Single and double acting pneumatic cylinders with integral mountings - HB series

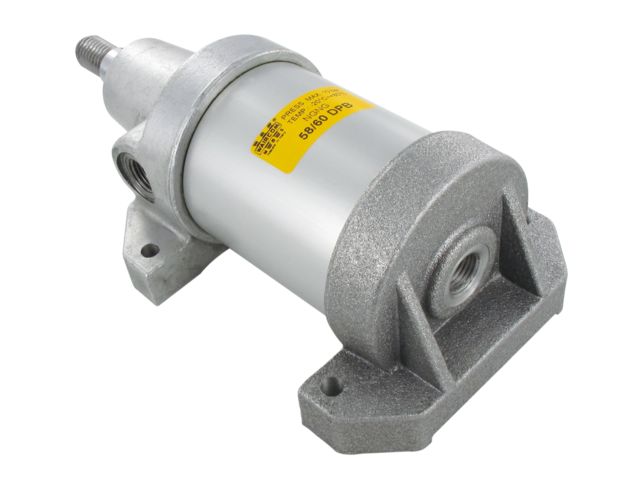

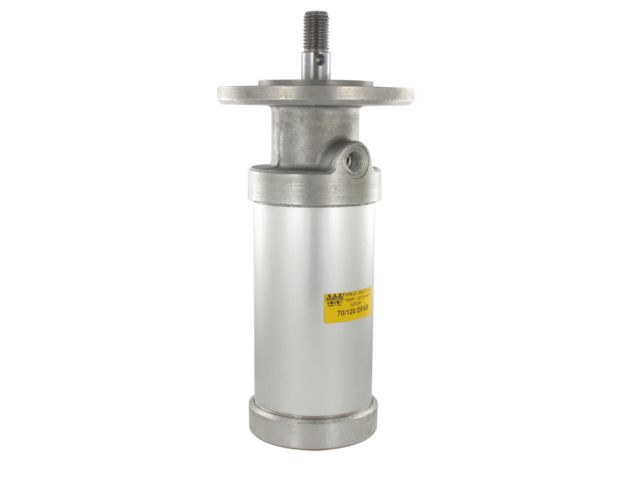

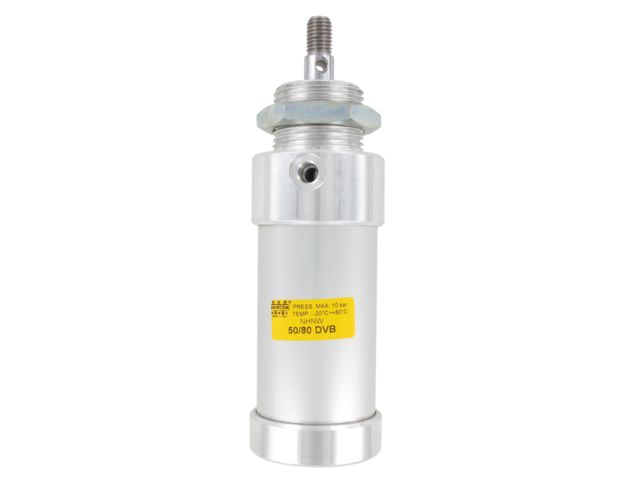

Double effect pneumatic cylinder

“ Bore sizes available (mm): 20, 27, 35, 40, 50, 58, 70, 85, 100 Connections: G1/8" (Ø20 to 50) and G1/4" (Ø58 to 100) Standard strokes (mm): 10, 15, 20, 30, 40, 50, 60, 70, 80, 90, 100, 150, 200, 250 Max. double-acting strokes (mm): 1,000, 1,500 or 2,000 depending on diameter Max. single-acting strokes: see our catalogue ”

Ask for a quote

Presentation

The HB series of single and double acting pneumatic cylinders with integral mountings are recommended for applications using lubricated and non-lubricated filtered compressed air. These cylinders are of the integral type and have integral fixings in the heads.

Available only in non-magnetic versions, the HB series is divided into 9 bores for each single and double acting version. It can also be supplied as a "through rod" type (except DFP series).

With a working pressure of 1.5 to 10 bar, these pneumatic cylinders are used in a temperature range of 0°C to +80°C (with dry air -20°C) and 0°C to +150°C with high temperature seals (with dry air -20°C).

https://www.senga.fr/en/products-e-shop

Technical features

Fluid: lubricated and non-lubricated filtered air Extruded tube: anodised aluminium Guide spout: anti-friction sintered bronze bushing Heads: high strength aluminium alloy Piston guide ring: acetal resin Seals: nitrilic elastomer Elastic dampers Working pressure: between 1.5 bar and 10 bar Working temperature: between 0°C and +150°C (with dry air -20°C)
