Presentation

The CPLT series of double-acting pneumatic cylinders from SENGA are square profile cylinders designed with mounting dimensions in accordance with ISO 6431 standards. They are divided into 6 bores with diameters of 32, 40, 50, 63, 80 or 100 mm.

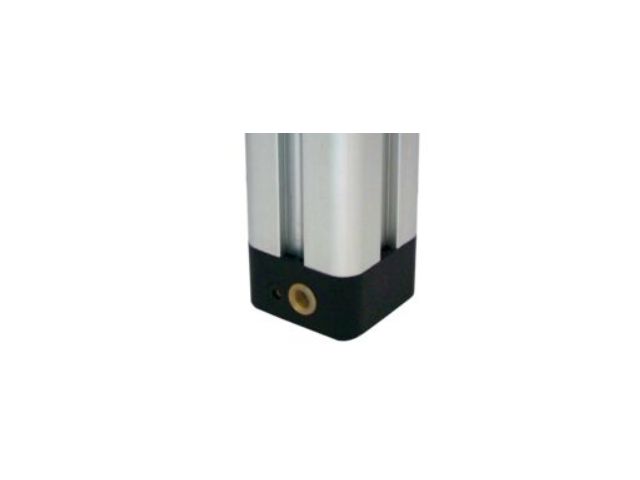

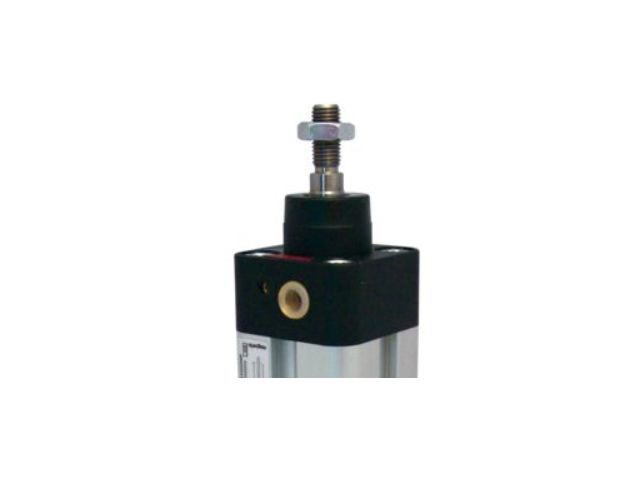

These cylinders consist of an anodised aluminium tube with extruded profile with grooves, a piston in acetal resin, a rod in ground chrome steel, a steel screw, polyurethane seals, a guide neck (bushing) in sintered anti-friction bronze, heads in thermoplastic polymer with brass inserts and adjustable decelerators as standard.

https://www.senga.fr/en/products-e-shop

Technical features

Operating temperature: between -20 °C and +80 °C Operating pressure: between 1 bar and 10 bar Fluid: filtered air, lubricated or not Cushioned stroke length: Ø 32 L = 24 mm; Ø 40/50 L = 29 mm; Ø 63/80 L = 35 mm; Ø 100 L = 40 mm Maximum stroke: 1000 mm Minimum stroke: 5 mm Stroke tolerance: ± 1.5 mm Materials: steel; aluminium; polymer - polyurethane Diameter: between 32 mm and 40 mm - (6 bore diameters 32, 40, 50, 63, 80 or 100 mm) Double acting
