Single and double acting pneumatic cylinders - P Series

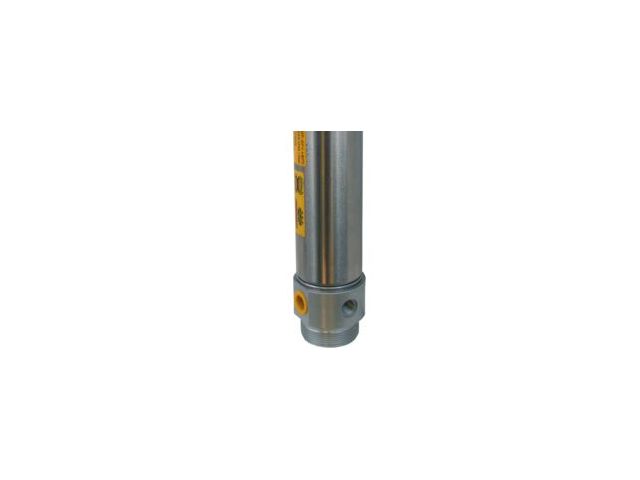

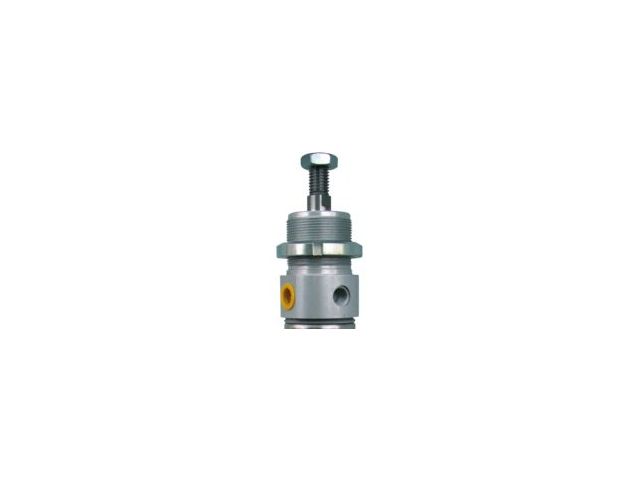

Double effect pneumatic cylinder

“ ✔ Use with magnetic sensors ✔ The P series is divided into 4 bores (in mm): 32 - 40 - 50 - 63 ”

Ask for a quote

Presentation

The single and double acting pneumatic cylinders of the P series, offered by SENGA, are recommended for applications using filtered, lubricated or non-lubricated compressed air.

Resistant to temperatures from 0 to +80°C, they are used in the industrial sector, industrial pneumatics, industrial automation, etc.

Manufactured from a round profile with a diameter of 32 to 63 mm, the P pneumatic cylinders are available in the basic version without adjustable cushioning and are suitable for use with magnetic sensors.

With a minimum stroke of 2 mm, these pneumatic cylinders provide a maximum single stroke of 50 mm and a maximum double stroke of 500 mm. They operate at a pressure of 1 to 10 bar.

https://www.senga.fr/en/products-e-shop

Technical features

Fluid: filtered compressed air, lubricated or not Operating pressure: between 1 bar and 10 bar Operating temperature: between 0°C and +80°C (with dry air -20°C) Poluyrethane seal VITON seal on request (0°C to +180°C) Materials: aluminium - anodised (heads are crimped); stainless steel - AISI 304 (tube); - Guide spout: sintered anti-friction bronze bushing - Piston: aluminium alloy with acetal resin guide ring. - Seals: polyurethane Optional adjustable cushions Diameters: from 32 to 63 mm Minimum stroke: 2 mm - Maximum single acting stroke (mm): 50 - Maximum double acting stroke (mm): 500 Single and double acting
