Single and double acting pneumatic cylinders in stainless steel round profile - CP series

Single and double acting pneumatic cylinders in stainless steel round profile - CP series - SENGA sas

Single and double acting pneumatic cylinders in stainless steel round profile - CP series

Double effect pneumatic cylinder

“ ✔ AISI 304 and 316 stainless steel ✔ Round profile ”

Ask for a quote

Presentation

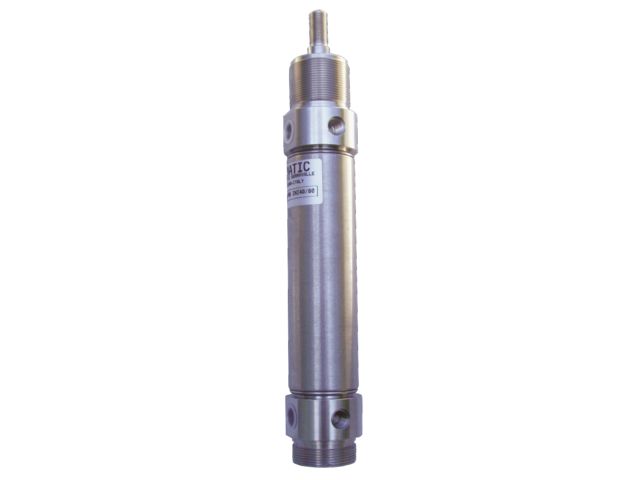

The single and double acting pneumatic cylinders of the CP series marketed by SENGA are designed in stainless steel and with non-standard mounting dimensions (round profile). The CP series is available in 4 bore sizes of 32, 40, 50, 63 mm.

These cylinders consist of an extruded AISI 304 stainless steel tube, AISI 316 stainless steel rod, nuts and fasteners, polyurethane rod and piston seal, sintered bronze guide neck (bushing), and AISI 304 stainless steel front and rear head...

They also have an AISI 304 stainless steel piston, an NBR head gasket and a plastoferrite piston magnet. A VITON seal is available on request.

https://www.senga.fr/en/products-e-shop

Technical features

Fluid: lubricated and non-lubricated filtered air Operating temperature: between 0 °C and +80 °C - (with dry air -30°C) Pressure: between 1 bar and 10 bar Materials: stainless steel Single and double acting
