Probe with process connector without extension tube SI7 Straight Pt100

Temperature probe

Ask for a quote

Presentation

Sensing element

Pt100 single or duplex
with tolerance class B, A or AA according to IEC 60751 (EN 60751)

Temperature range

-50 to + 300 °C

External sheath

"AISI 316L seamless tube – wall thickness 1 mm
Diameter: 8 mm by default, other diameters available on request.
Insertion length: standard 160, 250, 400 mm, any other length on request.
Hint: Insertion length
For parallel thread (BSP) the length L is measured WITH the thread
For conical threads (BSPT and NPT) the length L is measured WITHOUT the thread."

Process connection

Standard ½" BSP-M
Other sizes or threads available on request.
Also available without process connection when used with a sliding connector

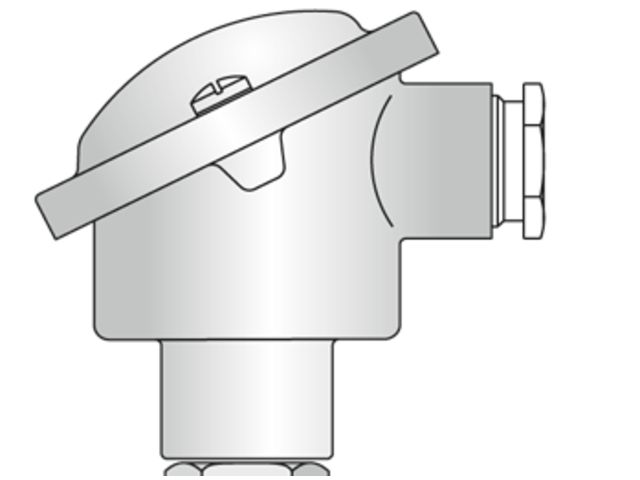

Connection head

Standard DIN type B head with M20 cable gland (other types available on request).

Wiring

"Standard ceramic terminal block
1 x 3-wire connection.
(1 x 2, 1 x 4, 2 x 2, 2 x 3-wire connection available on request)"

APPLICATIONS

General purpose measurement probe for gaseous and liquid media – all industry domains.
