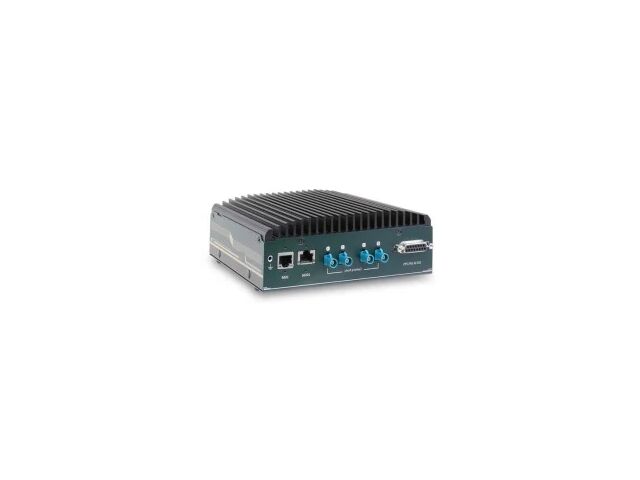

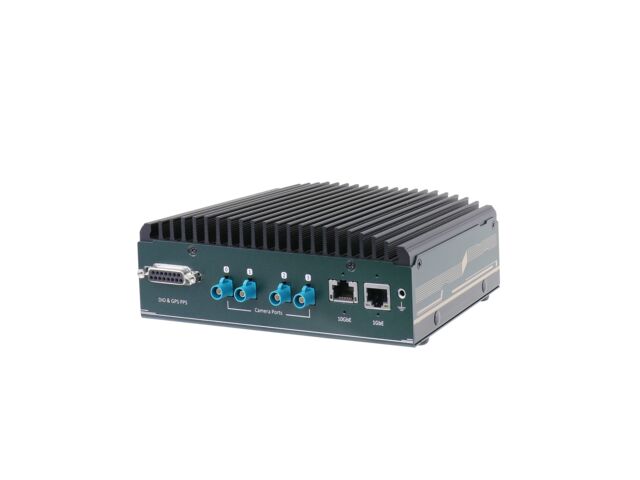

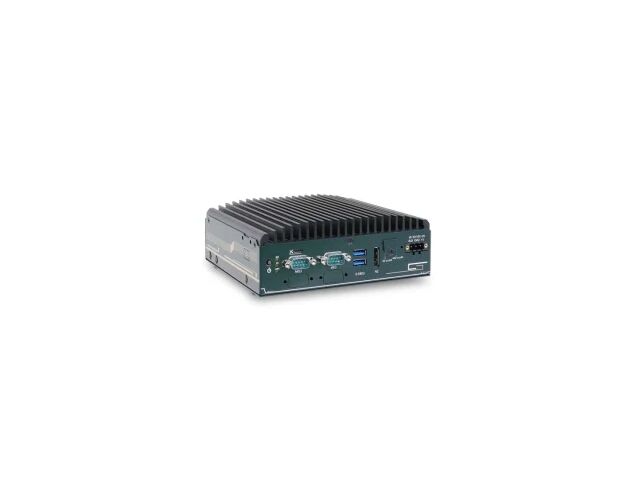

Rugged NVIDIA® Jetson Orin™ NX/ Xavier™ NX GMSL2 Camera Sensor Hub | NRU-51V+/ NRU-51V

Rugged NVIDIA® Jetson Orin™ NX/ Xavier™ NX GMSL2 Camera Sensor Hub | NRU-51V+/ NRU-51V - Neousys Technology Inc.

Rugged NVIDIA® Jetson Orin™ NX/ Xavier™ NX GMSL2 Camera Sensor Hub | NRU-51V+/ NRU-51V - Hardened PCs and tablets

Rugged NVIDIA® Jetson Orin™ NX/ Xavier™ NX GMSL2 Camera Sensor Hub | NRU-51V+/ NRU-51V - produit présenté par Neousys Technology Inc.

Rugged NVIDIA® Jetson Orin™ NX/ Xavier™ NX GMSL2 Camera Sensor Hub | NRU-51V+/ NRU-51V

Hardened PCs and tablets

PLIO perforated strapping is designed to neatly bind cables, conductors, wires and tubes, etc. Hole punched at regular intervals, the strapping is fixed with small plastic studs (see below). The...

“ ‧ Powered by NVIDIA® Jetson Orin™ NX or Xavier™ NX SOM bundled with JetPack 5.1.1 ‧ Rugged -25°C to 60°C fanless operation ‧ Support 4x GMSL2 automotive cameras via FAKRA Z connectors ‧ 1x 10GBASE-T 10Gb and 1x 1GBASE-T 1Gb Ethernet port ‧ 2x mini-PCIe sockets for WiFi/ GNSS/ NVMe/ CAN modules ‧ 1x M.2 3042/ 3052 B key socket for 4G/ 5G mobile communication ‧ 1x isolated CAN 2.0, 1x configurable RS232/ 422/ 485 port, and 1x GPS PPS input ‧ 8V to 35V wide-range DC input with built-in ignition power control ”

Ask for a quote

Presentation

NRU-51V series is a rugged Jetson Orin™ NX/Xavier™ NX computer supporting GMSL2 cameras that can act either as a sensor hub or a perception unit for ADAS, teleoperation, autonomous mobile robots, and autonomous vehicles.
By supporting GMSL2 automotive cameras, they enable NRU-51V+ with greater vision capability by taking advantage of advanced features such as IP67 waterproof, high dynamic range (120dB HDR), auto white balance (AWB), and LED flicker mitigation (LFM). NRU-51V+ can obtain high quality images with minimal latency regardless of lighting conditions, from bright sunny days to pitch-black nights. Moreover, it has a unique synchronization mechanism capable of acquiring images from four GMSL2 cameras simultaneously within microseconds channel-to-channel skew.

It can further accept GPS PPS signal to align image data with LIDAR or synchronize cameras on other systems.
Thanks to the great power efficiency of NVIDIA® Jetson Orin NX™ NX SOM, NRU-51V+ delivers 100 TOPS inference performance in its 25W power package. Users can transfer raw camera images through its built-in 10GBASE-T Ethernet to another GPU server for perception processing, but also leverage its significant TOPS for real-time object or ROI detection. For teleoperation applications, users can utilize its hardware H.264/265 video codec, to encode video streams from four GMSL2 cameras in real-time and transmit the live video feed to a driver at a remote location via 5G
telecommunication with minimum latency.

The combination of GMSL2 interface and Jetson Orin™ NX makes NRU-51V+ much more than just a simple edge AI computer. With greater vision brought by automotive cameras plus I/O interfaces such as 10GbE, CAN 2.0, and M.2 for 5G broadband, NRU-51V+ plays a central role in a moving platform, as a sensor hub for ADAS, a perception unit for AGV/ AMR, or a teleoperation controller for off-highway vehicles.
