Round column drills Geared Transmission AX-32

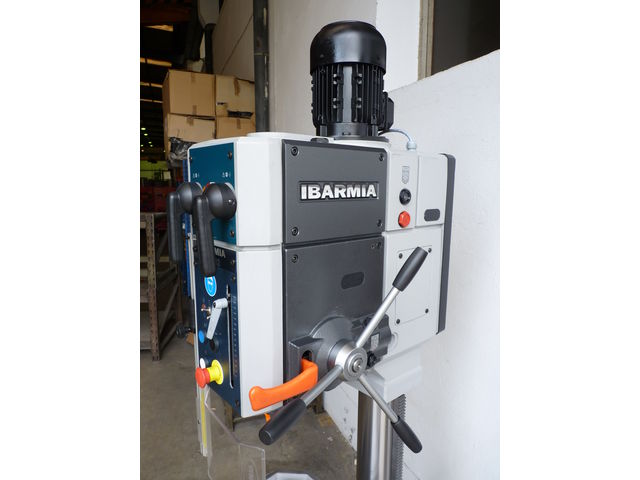

IBARMIA mod. AX-32        Drill with sliding table   Geared head   9 spindle speeds   2 automatic feeds   Mechanical clutch   Depth scale and adjustable depth stop   Speed plate and selecting levers on head front   Gear box lubrication by automatic pump   Automatic tool ejector   Thermo-magnetic motor breaker switch   Emergency STOP push button   Coolant system and worklight   Fix table   Right/Left turn   Drill guard with microswitch   CEE Norms   Colour combination of RAL7004 and RAL7466       Technical characteristics:   Maximum drilling capacity in steel St.60 32 mm. Maximum drilling capacity in cast iron 200 Brinell 35 mm. Maximum tapping capacity in steel St.60 M 22. Maximum tapping capacity in cast iron 200 Brinell M 27. Morse Taper MT MT-4. Maximum spindle stroke (drilling depth) 150 mm. Main motor power 1,5CV. Coolant pump motor power 0,10CV. Transmission Gear box. Number of speeds 9. Speed range with motor at, 1500 r.p.m. 50 Hz 132-1852 rpm. Feed Automatic. Nr. of automatic feeds 3 Automatic feed range 0,1-0,2. Worktable dimensions (LxW) 420x400 mm. Column diameter 125 mm. Distance from spindle centre to column face 300 mm. Net weight 400 Kg. Gross weight with packing 450 Kg. Packing dimensions (length x width x height) 2,34x0,61x1,16 m     Optional equipment:   MGI: Tiltable   MGM: Reversible rotating tiltable with vice   MCC-125: Co-ordinate table over support X= 380/Y= 220 mm   RS: Automatic feed reversing system for tapping   RPF:Pitch controlled tapping with braking system by speed inverter   RPF + TAK:RPF with digital rpm counter   HGP:Master guide spindle and nut set   HB:Hydro-pneumatic power feed unit   VE:Variable speed by electronic variator   VE + TAK: Continuos speed by electronic variator with digital rpm counter   LBC: Digital read-out scale   FL-116: 116 mm opening fixed vice   FL-157: 157 mm opening fixed vice   P16-M4: Drill chuck from Ø1 to Ø16 mm Morse 3 taper
