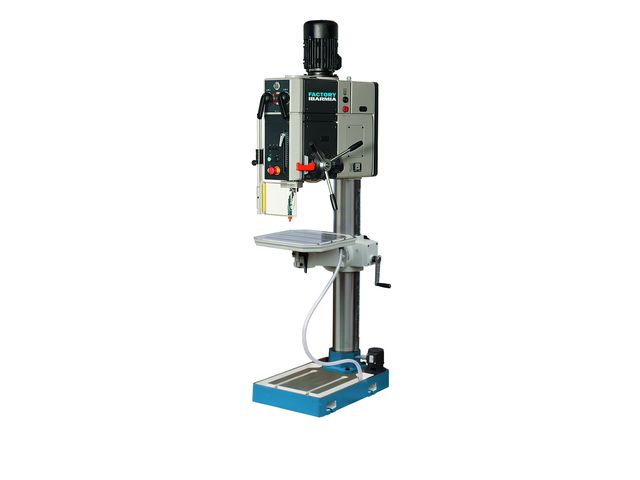

“ Excellent quality-price relationship supported by the company IBARMIA that is the world leader in manufacture of drilling and tapping machines since 1961. ”
STANDARD EQUIPMENT
Rotating and tilting table
Automatic tool ejector
Low voltage electric equipment
Thermomagnetic switch
Emergency STOP push button
Spindle reversing switch
Electrical equipment integrated on machine's head
Safety drill guard with microswitch
Table with "T" slots
"CE mark
TECHNICAL CHARACTERISTICS:
Maximum drilling capacity on 60kg steel Ø mm
50
Maximum drilling capacity on 200HB. Cast iron Ø mm
54
Maximum tapping capacity on 60 kg. Stell mm
M 35
Maximum tapping capacity on 200 HB. Cast iron mm
M 38
Morse Taper MT Nr.
4
Drilling depth
180
Nr. and automatic feed range (mm/rev)
(3) 0,10-0,20-0,30
Feed
Automatic
Motor power CV
4
Transmission
Gear box
Nr. Of speeds
9
Speed range with 2 speed motor 1500/3000 rpm 50hz 3ph rpm
132-194-277-319-466-666-883-1296-1852
Table dimensiones (W x L) mm
480 x 480
Column diameter mm
150
Distance from spindle centre to column face mm
350
Distance spindle-table mm
Min.80 /Max.880
Distance spindle-base mm
1.225
Net weight Kg
490
Gross weight with packing Kg
540
Packing dimensions (length x width x height) m3
1,52
