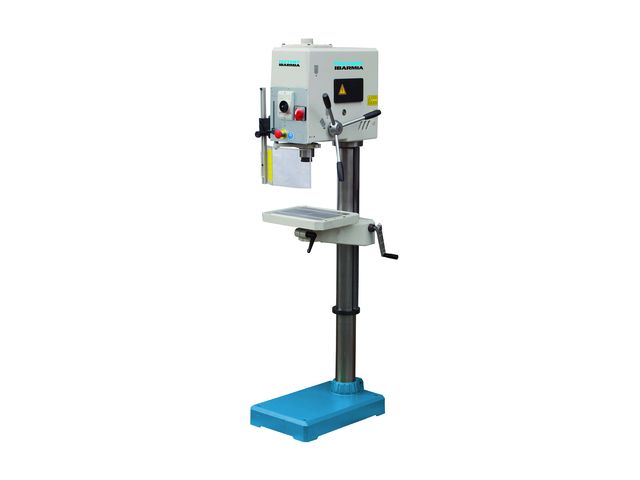

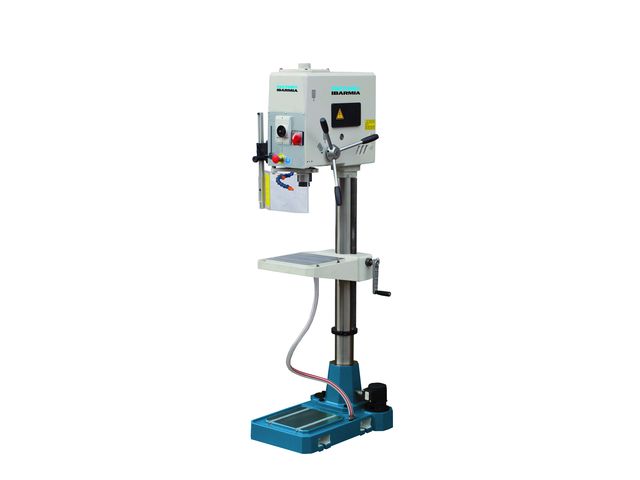

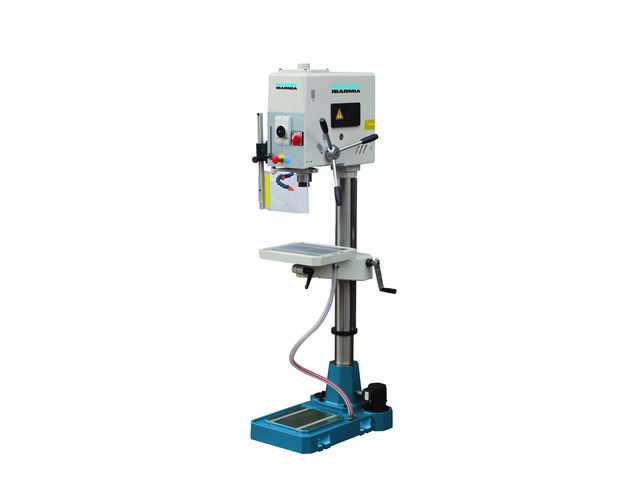

Drilling machine IBARMIA Factory IZ-32

STANDARD EQUIPMENT
Depth scale and adjustable depth stop
automatic tool ejector
Low voltage electric equipment
Security microswitch on cover
Emergency  STOP push button
Spindle reversing switch
Electric equipment integrated on machine's head
Safety drill guard with microswitch
Table with "T" slots
"CE" mark

TECHNICAL CHARACTERISTICS:  Maximum drilling capacity on 60kg steel                      Ø mm 32 Maximum drilling capacity on 200HB. Cast iron           Ø mm 35 Maximum tapping capacity on 60 kg. Stell                       mm M 20 Maximum tapping capacity on 200 HB. Cast iron           mm M 24 Morse Taper MT                                                                  Nr. 3 Drilling depth                                                                      mm 120 Tapping depth                                                                    mm 90 Feed Manual 2 speed motor power                                                       CV 1,8/3,2 Transmission Belt - pulleys Nr. Of speeds 10 Speed range with motor 1500/3000 rpm 50hz 3ph       rpm 245-355-490-710-835-1240-1670-2000-2480-4000 Table dimensiones (W x L)                                               mm 300 x 270 Column diameter                                                               mm 100 Distance from spindle centre to column face                  mm 250 Distance spindle-table                                                       mm Min.105 /Max.655 Distance spindle-base                                                      mm 1.195 Net weight                                                                            Kg 260 Gross weight with packing                                                  Kg 320 Packing dimensions (length x width x height)                   m3 1,03
