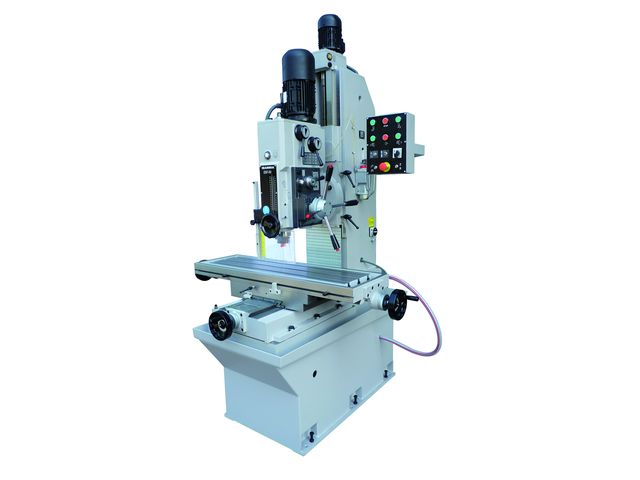

Prismatic column drilling/milling machines IBARMIA - EBF-35

Column drill

“ Excellent quality-price relationship supported by the company IBARMIA that is the world leader in manufacture of drilling and tapping machines since 1961. ”
Ask for a quote Receive Documentation Contact the supplier

IBARMIA mod. EBF-35   Drilling/Milling machine   Transmission by gears   16 spindle speeds   3 automatic feeds   Electromagnetic clutch   Motorized moving head   Swivel head   Co-ordinate table   Coolant system and worklight   Right/left turn   Speed plate and selecting levers on head front   High/low speed range selector   Front hand wheel for fine feed work   Depth scale and adjustable depth stop   Built-in low voltage electrical equipment in column rear   Emergency STOP push button   Drill guard with microswitch*   CEE Norms   Colour combination of RAL7004 and RAL7466       Technical characteristics:   Maximum drilling capacity in steel St.70 35 mm. Maximum milling capacity in steel St.70 55 cm3/min. Maximum tapping capacity in steel St.60 M 35. Morse taper MT  4. Maximum spindle stroke (drilling depth) 180 mm. Main motor power 1,2/2CV. Transmission Gear box. Number of speeds 16 Speed range with motor at, 1500/3000 r.p.m. 50 Hz 94-2.225 rpm. Feed Automatic by electromagnetic clutch Number of automatic feeds 3. Automatic feed range 0,1-0,18-0,24. Worktable dimensions (LxW) 1220x360 mm. Longitudinal movement of the table (X) 700 mm. Cross movement of the table (Y) 370 mm. Distance from spindle centre to column face 390 mm. Net weight 910 Kg. Gross weight with packing 1400 Kg. Packing dimensions (length x width x height) 2,5x1,68x1,68     Optional equipment:   RS: Automatic feed reversing system for tapping   RP:Pitch controlled tapping   RPF:Pitch controlled tapping with braking system   HGP:Master guide spindle and nut set   HGP-S:special master guide spindle and nut set   SC:Column riser   SERVO X: SERVO feed system in X axis   SERVO Y: SERVO feed system in Y axis   ENG X: Gear box feed system in X axis   ENG Y: Gear box feed system in Y axis   LDG-1:Digital read-out system for table axis (X)   LDG-2: Digital read-out system for 2 axis ( X - Y)   LDG-3: Digital read-our system for 3 axus (X - Y - Z)   ISO-30: ISO-30 spindle   ISO-40: ISO-40 spindle   TCR-ISO: Quick change nut for ISO cone   CRA-ISO:Automatic tool quick change for ISO cone   PPZ: Set of collet holder, collets, key, nut and box   MB:Security bimanual command    LBC: Digital read-out scale
