RG600C uncooled LWIR gas detection & thermography camera

RG600C uncooled LWIR gas detection & thermography camera - INNOVIDEA

RG600C uncooled LWIR gas detection & thermography camera - Thermal infrared cameras

RG600C uncooled LWIR gas detection & thermography camera

Thermal infrared cameras

This food quality penetrating oil is lubricant penetrating oil with a very low surface tension. Its ingredients enable very fast release of parts seized by oxidation Non-Food Compounds Program Listed...

“ - Uncooled thermal gas detection camera in VGA format, ATEX certified - Numerous gases detected (CH4, SO2, N20, freons), spectral band 7-8.5µm - Visible (5Mpixels)/IR image fusion ”

Ask for a quote

Presentation

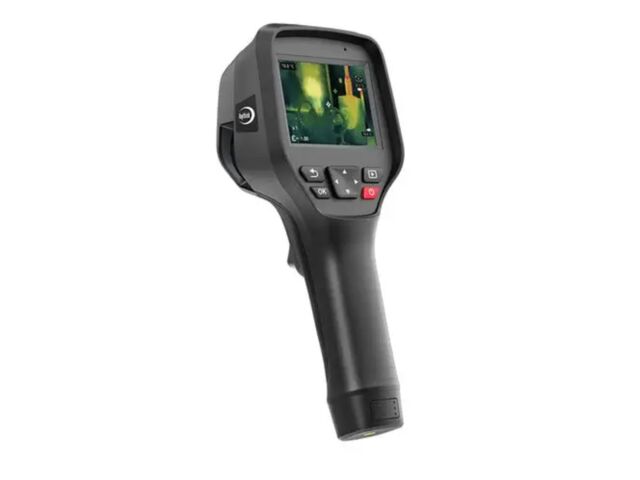

Using an uncooled VOx LWIR microbolometer detector (narrow bandpass filter 7- 8.5µm) with 640x512 pixel spatial resolution at 12µm pitch and high sensitivity (NETD 23mK), Raythink's RG600C camera enables non-contact visual leak location for dozens of gases such as methane (CH4), sulfur dioxide (SO2), nitrous oxide (N20) and certain freon refrigerant gases.

ATEX Class IIC T4 certified and compliant with CE and RoHS standards, its low weight of 670g and 3-hour battery life make it ideal for tracking gas leaks. These can be viewed in thermal or image fusion mode with the visible image from the 5Mpixel sensor on its 3.5" touchscreen, then saved on the native 32GB SD card or exported via USB or Wifi.

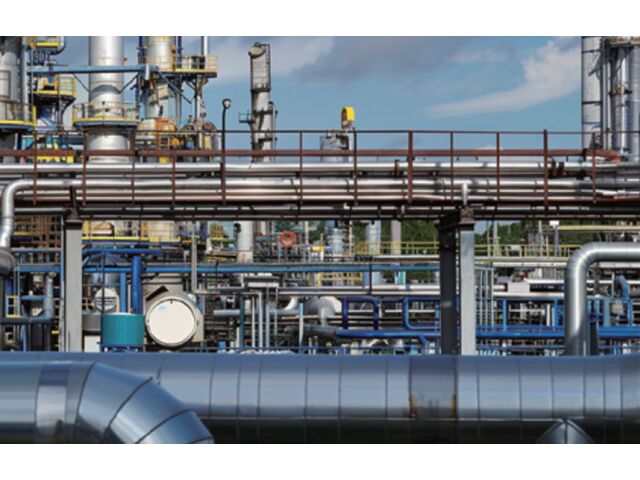

The RG600C is particularly suited to the following applications: emissions management and equipment maintenance in industry, gas safety and emergency response in fields such as oil & gas, petrochemicals, environmental protection, air conditioning or refrigeration units.

Technical features

High thermal image resolution 640x512 pixels with 12µm pitch Sensitivity NETD 23mK Optics 19mm - field 23°x18° Camera certified ATEX class IIC , CE and RoHS Image/video storage on SD 32GB or export via Wifi or USB Dimensions : 56,4×105,1×105, 3mm - weight : 670g Gases detected: methane, nitrous oxide, sulfur dioxide, phenol, ethyl acrylate, 2-ethylhexyl acrylate, freon (R13, R13B1, R123, R125, R134A, R417A, R422A, R508A) Autonomy: 3 h - Power supply: rechargeable Li-Ion battery (USB-C)

Download the complete technical features
