ISM-ATTO640D MIPI-CSI2 Infrared Module

Thermal infrared cameras

“ - VGA shutterless LWIR module (8-12 µm) compatible with NIVIDIA Jetson Nano and Jetson Xavier NX GPUs - V4L2 API and driver - Sensor: LWIR microbolometer 640 X 480 pixels 12 µm pitch NETD: 50 mK - shutterless - GUI: ISEye interface software - S-Mount fixed focus optics: 5.3 mm F/1.3 HFOV (89°) and 4.3 mm F/1.2 HFOV (112°) ”

Ask for a quote

Presentation

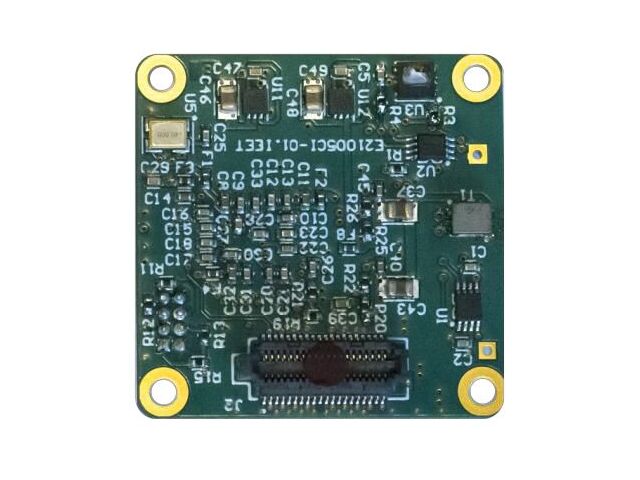

The ISM-ATTO640D LWIR (8-12 µm) infrared module has been specially developed to interface with NVIDIA GPUs.

It offers 8- or 14-bit digital output, depending on the selected mode, to the MIPI-CSI2 standard compatible with NVIDIA's JetsonNano and JetsonXavier NX versions.

Shutterless, with 640 x 480 pixel resolution at 12 µm pitch (Lynred microbolometer detector) and a NETD of 50 mK, the ISM-ATTO640D module is offered with its ISEye interface software.

It is aimed at developers of thermal imaging cameras with embedded solutions.

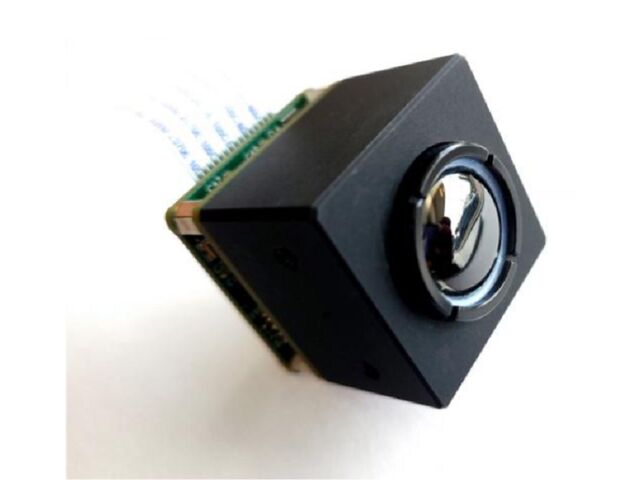

Its small footprint (30 x 30 x 10 mm) and low power consumption (<0.60 W) make it particularly interesting for the fields of safety and industrial process control.

Several models are available:

- ISM-ATTO640D with 5.3mm f/1.3 (HFOV 89°) or 4.3mm F/1.2 (HFOV 112°) S-mount optics
- ISM-ATTO640D (without optics).

Technical features

Sensor: LWIR microbolometer 640 X 480 pixels 12 µm pitch NETD: 50 mK - shutterless Fixed focus optics S-Mount: 5.3 mm F/1.3 HFOV (89°) and 4.3 mm F/1.2 HFOV (112°) Digital interface: MIPI CSI-2, 2 lanes Control interface: I2C (2 wires serial communication) Clock frequency: 40 MHz GUI: ISEye interface software

Download the complete technical features
