Thermal camera C.A 1950

Thermal infrared cameras

Digital infrared pyrometers for non-contact temperature measurement from -40 to 700 °C with miniature sensor head. The pyrometers IN 520-N and IN 520 are digital pyrometers for non-contact temperature...

“ 100 % French! ● Focus-free with 20° x 20° field of view ● Vocal annotations to record your comments directly on the image ● Connection to current clamps and multimeters: all the necessary measurements simultaneously ”

Ask for a quote

Presentation

Exceptional battery life of 13 hours without wasting any time, as it starts up in 3 seconds

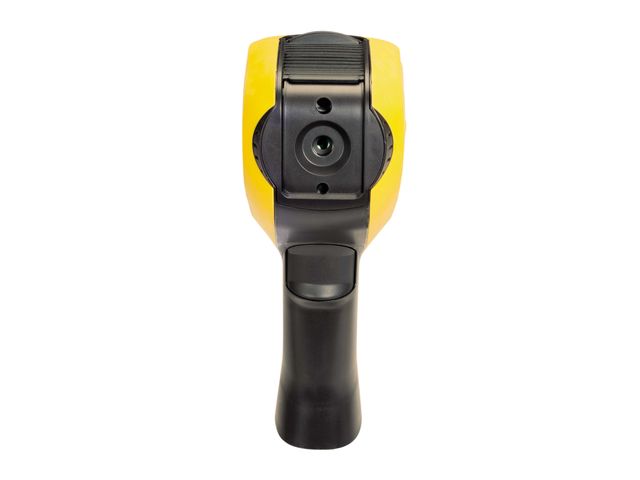

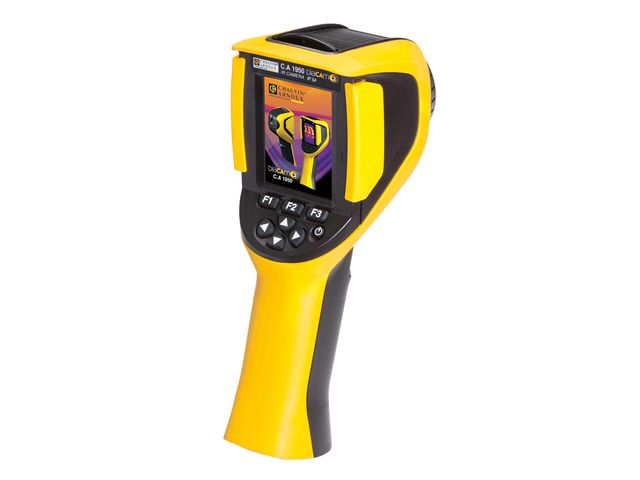

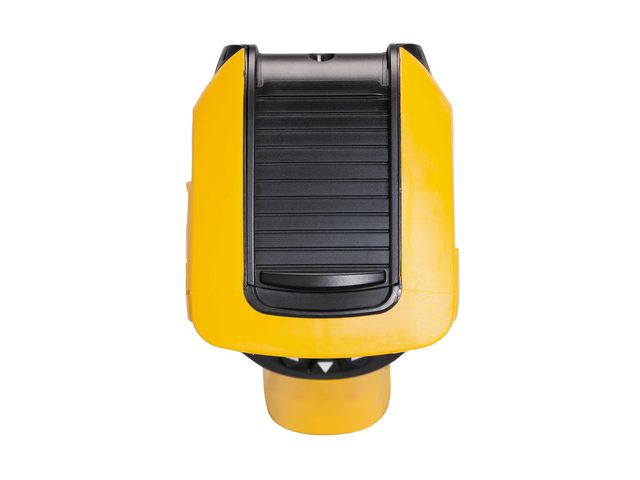

The DiaCAm2 is balanced: it doesn't move even when stood on a benchtop. The display uses a wide 2.8 inch screen with automatic brightness adjustment. The C.A 1950 is focus-free with a 20° x 20 ° field of view. The flap protecting the lens is built into the instrument, so it does not get in the way and cannot be lost. Contextual help guides users to limit the risk of error.

The C.A 1950 is a communicating camera which can simultaneously recover the necessary measurements (current, etc.) from current clamps and multimeters via Bluetooth. In this way, users can link to the thermograms the measurements made simultaneously with current clamps or multimeters. The emissivity table can be completed as required. It is also possible to rename the images and thermograms by site and record voice comments for easier follow-up.

This rugged, IP54 instrument can withstand falls of up to 2 m. No problem when you throw it into your toolbox.

With its Eco-Conception (eco-design) labelling, the C.A 1950 camera from Chauvin Arnoux meets the environmental requirements and is designed to allow recycling of its parts.

Technical features

80 x 80 UFPA microbolometer-type detector, 8 ~14 μm IFOV (spatial resolution): 4.4 mrad temperature range: -20°C to +250°C display mode: thermal image, real image. Merging of images possible with the PC software measurement tools: 1 manual cursor + 1 automatic detection + Min Max on adjustable area + Temperature profile + Isotherm modifiable parameters: emissivity, environmental temperature, distance, relative humidity storage on 2 GB SD micro-card (approx. 4,000 images) or removable card up to 32 GB IP 54 protection Weight / dimensions: 700 g with rechargeable batteries / 225x125x83
