ROEMHELD

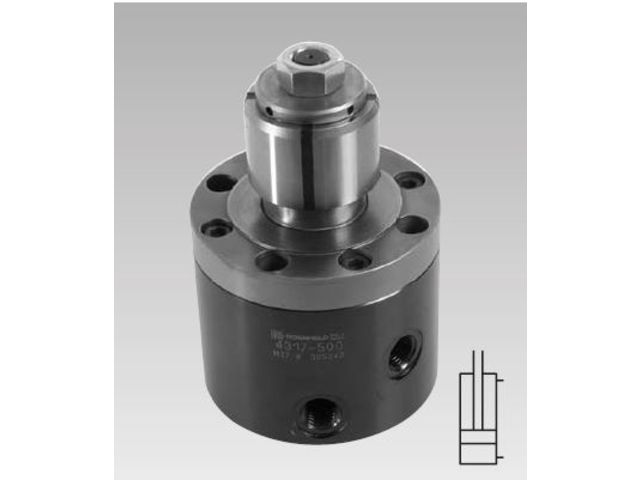

Bore Clamp B 1.481

Positioners and Tightening components

Ask for a quote Receive Documentation Contact the supplier

Application

The bore clamp is particularly suitable for centring and clamping of workpieces with smooth machined bores ranging from 16 to 46 mm in diameter and a support surface square to the hole axis.

Advantages
* Clamping and supporting with one element
* Compact design
* High clamping force
* Repetitive accuracy of clamping force 0.005 mm
* 5 optimised clamping ranges
* Hardened support face
* Pneumatic seat check
* Easy exchange of segment clamping bushings
* Centring at the bottom of the body
* Compensating and non-centring variants are available
* Oil supply optionnally by pipe threads or drilled channels
* Standard FKM seals
* Vulcanised segment clamping bushing

Download the complete technical features
