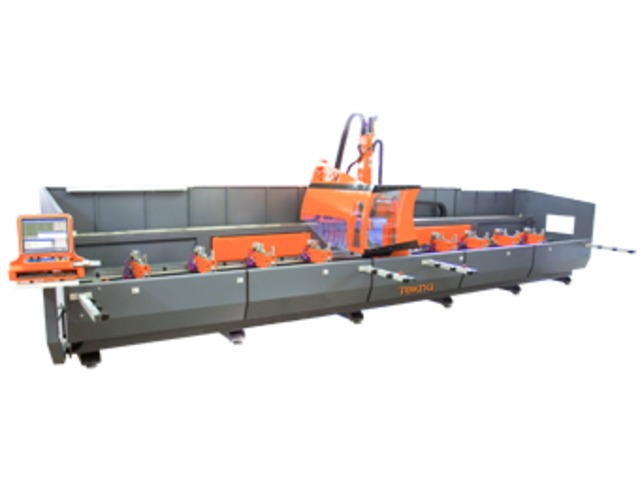

Model TK 444 - Machining Center: 3 controlled axes plus 1 pneumatic to execute operations such as drilling, conventional milling and copy milling on aluminium extruded profiles and on different materials like steel, steel reinforced PVC and other plastic materials.
Bed frame made of very thick structural steel equipped with linear recirculating ball slideways for the axis X. Precision rack and pinion and movement along the axis by brushless motor with maxi speed of 80 m/1.
Semi-portal gantry of high strength structural tubulars complete with linear recirculating ball slideways for axes Y and Z. Recirculating ball screws displaced through Brushless motor with a maximum speed of 40 m/1' (Y and Z).
Mist coolant system utilizing micro-drop technology.
Twin - machine divided into two areas for length 7200 mm. While the unit is machining on one side, the operator can safely load/unload the second work area thus reducing set up time increasing productivity.
Possibility to machine three faces: fixed pneumatic positioning of the milling head on 0°, +90°, -90°.
External closure on 3 sides. Side doors for extra long machinings.
Chips collecting tank.
USB ports, Lan, Modem.
