5-axis CNC machining centre - Satellite XL

Machining centre

Ask for a quote

Presentation

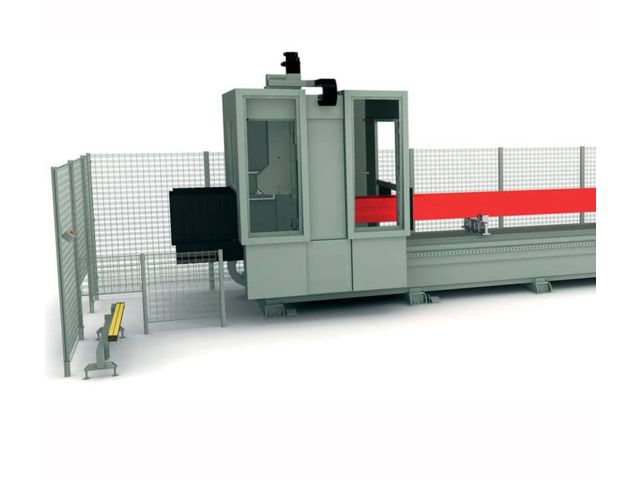

5-axis CNC machining centre with moving gantry structure. Designed for milling, drilling, thread cutting and cutting on bars or workpieces of aluminium, PVC, light alloys in general and steel. The moving part of the machine consists of a gantry with precision rack and pinion drive.

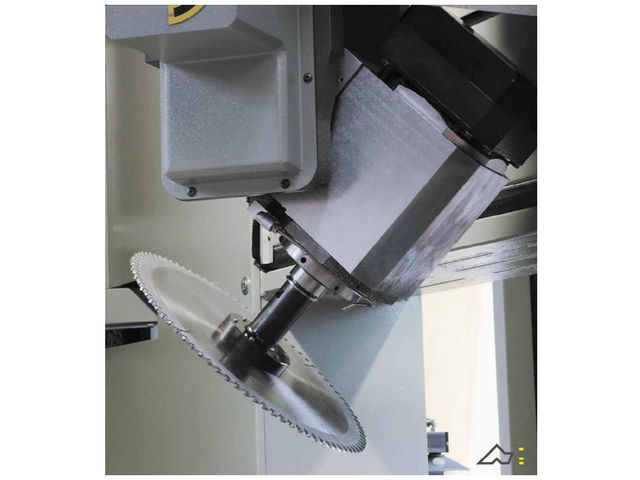

The high power (10 kW in S1) electrically-driven spindle with HSK-40E tool holder allows machining operations, including heavy-duty work, with optimum results in terms of speed and accuracy. A 9-place tool magazine is installed behind the moving gantry structure. The 300 mm blade is housed separately.

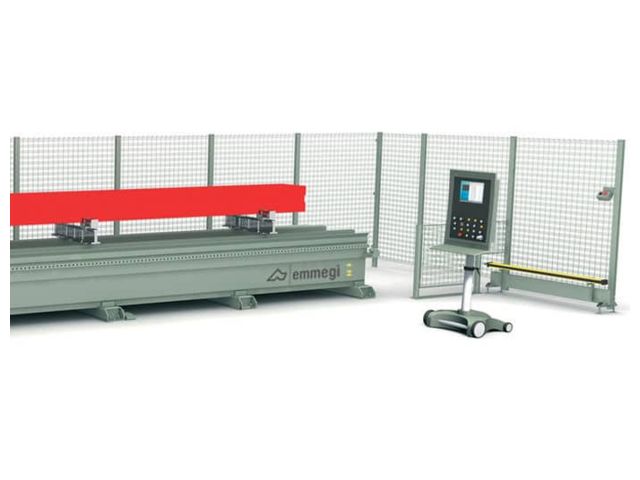

The machine can be used in double mode so as to minimize machine downtime, as it is possible to change the workpiece (load/unload) in “concealed” time. It is also possible to load and consequently machine workpieces and to perform different operations differ between the two work areas. The gantry is provided with a guard which, besides protecting the operator, also reduces the noise impact on the environment.
