LWIR QVGA Thermal module E2Eye in USB-C UVC

Hand drive carton closing stapler - Very easy to use - Stapler for sealing all qualities of filled cartons including thicker wall export cartons - You can choice of depth penetration settings - Use...

“ - LWIR shutterless module with USB-C UVC output - Small form factor and low weight ”

Ask for a quote

Presentation

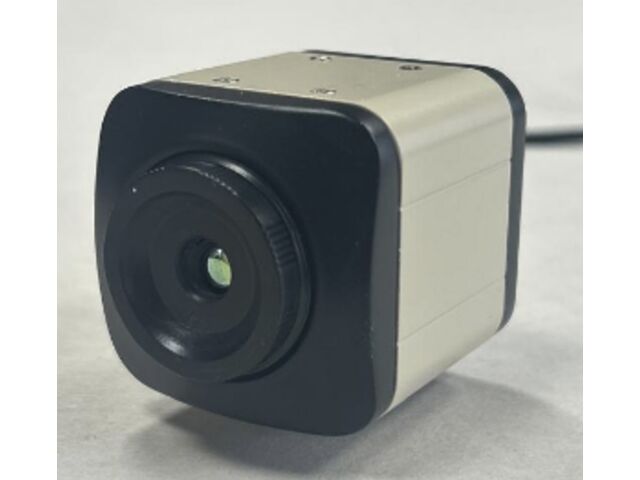

The E2Eye320 shutterless thermal module from E2I Solutions is based on an LWIR microbolometer detector with 320x240 pixel resolution and 12µm Lynred pitch.
Offered with a USB-C UVC output, it offers a NETD of 50mK or less at 60fps frame rate.
Several optics are available for horizontal fields of view of 28°, 41° or 70°
Its compact size of 36x36x25mm and its

This made-in-France solution is ideal for users wishing to integrate an infrared imaging channel into their product design.
Consult us if you need a radiometrically calibrated version for use in non-contact temperature measurement or thermography.

Technical features

LWIR thermal module 320x240 pixels 12µm pitch NETD <50mK Frame rate 60Hz USB-C UVC output Dimensions: 36x36x25mm Frame rate 60Hz USB-C UVC output Dimensions: 36x36x25mm USB-C UVC output Dimensions: 36x36x25mm Weight : 21g Power consumption : 1,2 W (5V)

Download the complete technical features
