FOCQUET SA

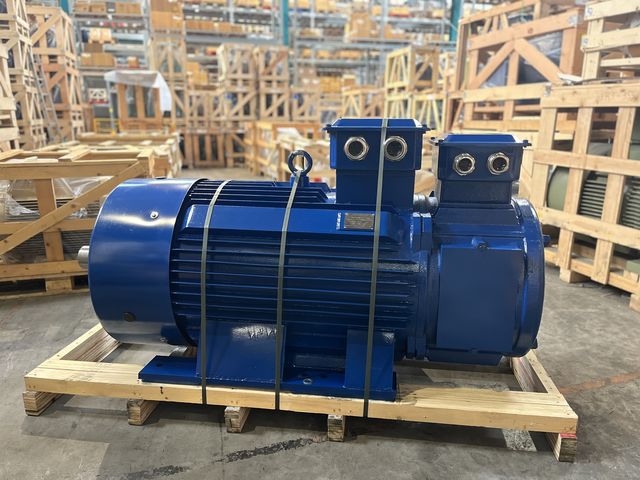

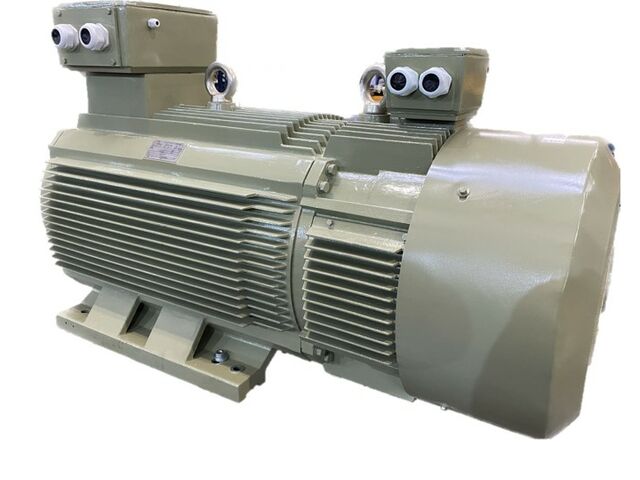

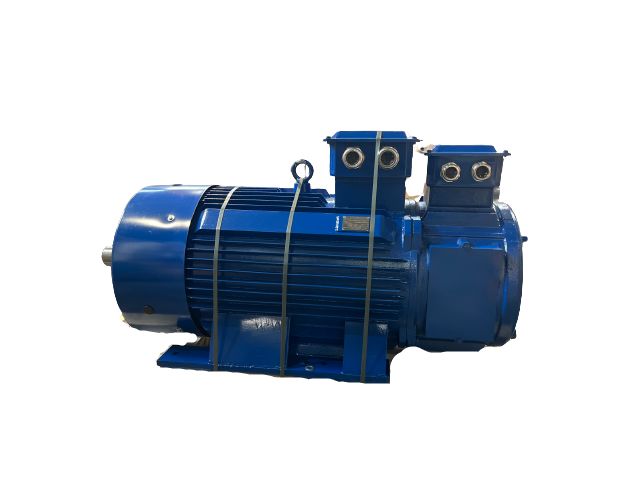

Low voltage slip ring motors

Electric Motors

Ask for a quote Receive Documentation Contact the supplier


Slip ring motors are often used in applications where the maximum transient torque must be greater than a conventional cage induction motor, such as quarries.

SLIP RING MOTORS (OUR CODE: MB)
- Three-phase wound rotor motors
- Standard cast iron housing
- Stored in IP55 protection and on request in IP23
- Stored in 230/400V from 22kW to 315kW , 400/690V to 560kW
- Operating in 50/60hz
- Other special voltages or insulation class H on request
- Form B3-B5-V1- B35-V15
- Stored in S1 service or S3 service (6 starts per hour)
- On request, we can supply motors for lifting applications with 1 or 2 cylindrical or conical axes
- Standard motors equipped with PTC sensors
- Equipped with roller bearings for belt drive
- Electrolytic starters are stocked to start these motors
