FOCQUET SA

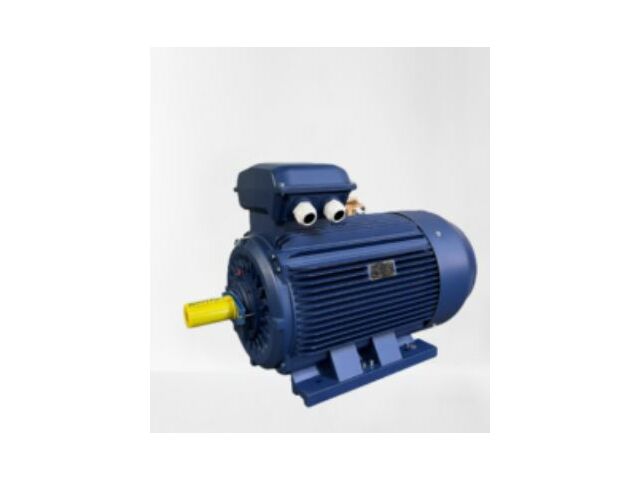

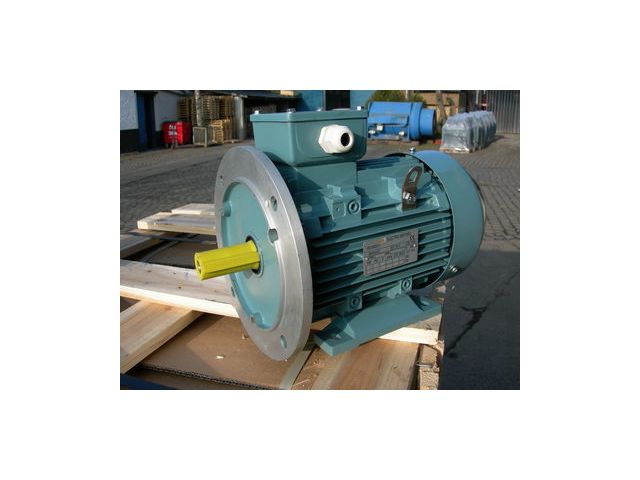

Asynchronous motors Aluminium IP55

Electric Motors

“ - In-house technical expertise - Competitive pricing - Guaranteed quality - Available stock - Speed of service ”
Ask for a quote Receive Documentation Contact the supplier


Aluminium motors offer a lighter solution to our customers, compared to a cast iron frame.

STANDARD ALUMINUM MOTORS (OUR CODE: MA)
- Three-phase motors with aluminum cage
- IP55 protection
- Class F insulation
- Class B heating
- Removable feet, which allows the terminal box to be turned to the desired side
- Stored in 230/400V - 400/690V
- Operating in 50/60hz
- Other special voltages or insulation class H on request
- Stored speed: 3000 rpm or 1500 rpm or 1000 rpm or 750 rpm
- Efficiency IE3/IE4 (tomorrow IE5)
- Form B3-B5-V1-B14-B35-V15-B34
- Motors from size 56 to 160
- These motors can be equipped with options such as special sensors like PTO or PT100
- IP56 option
- Standard motors equipped with PTC sensors
- These motors can be equipped with options such as special sensors, purge holes, heating resistors, umbrella covers, specific epoxy paint - C3M- C5M
- Three-phase forced ventilation (code VF) or single-phase (code VFW). Cooling IC416 can also be mounted as an option
