Presentation

The world is changing and companies are under increasing pressure from environmental policies. An international standard was established in 2008 and updated in 2014 to classify the international energy efficiency (IE) of low-voltage three-phase induction motors. This is the IEC/EN 60034-30.1 standard. It reinforces the balance of international efficiency regulations.

At Focquet, we have more and more IE4 motors to meet the needs of our environmentally conscious customers. We continue to invest heavily in this type of motor.

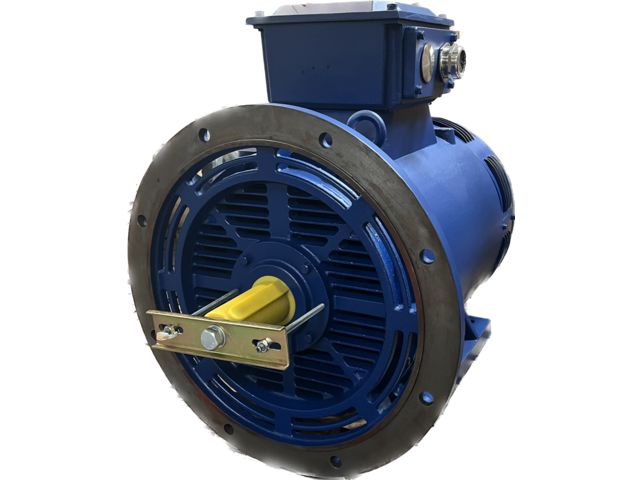

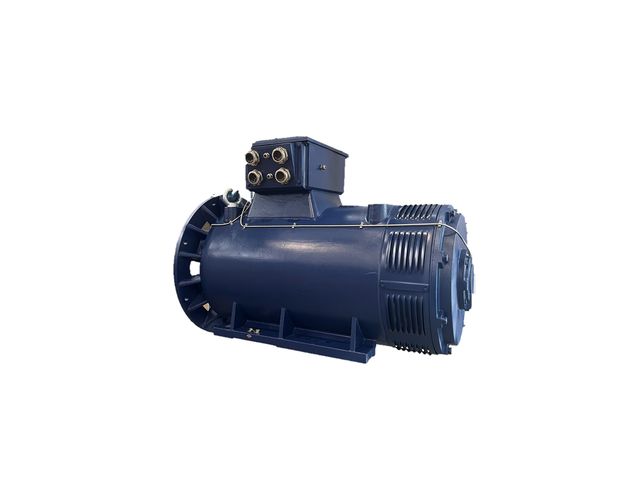

OPEN VENTILATED MOTORS (OUR CODE: MOV)
- Three-phase motors with cast iron cage
- IP23 protection
- Class F insulation
- Heating class B
- Legs molded in the casing
- Stored in 230/400V - 400/690V
- Operating in 50/60hz
- Cooling IC01
- Other special voltages or insulation class H on request
- Stored speed : 3000 rpm or 1500 rpm or 1000 rpm
- Efficiency IE4
- Form B3-B5-V1-B35-V15
- Standard motors equipped with PTC sensors for all motors
- Motors are equipped with an isolated bearing for use with a variable speed drive. The PI will eliminate circulating currents in the rotor.
- Provided with two ball bearings
- These motors can be equipped with options such as special probes (e.g. PTO), purge holes, heating resistors, umbrella covers, specific epoxy paints - C3M- C5M, a three-phase forced ventilation code VF cooling IC06
