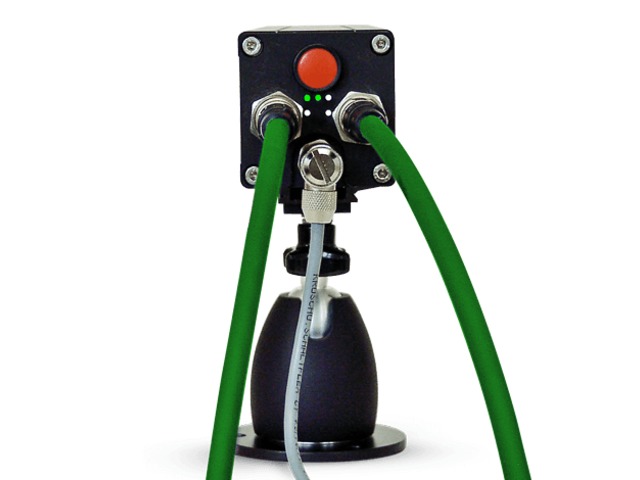

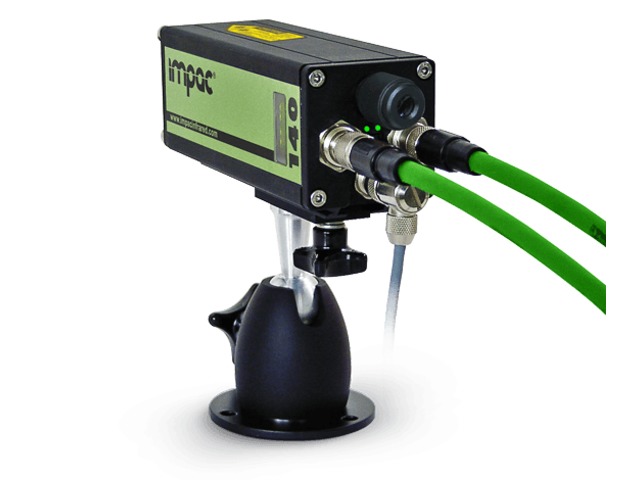

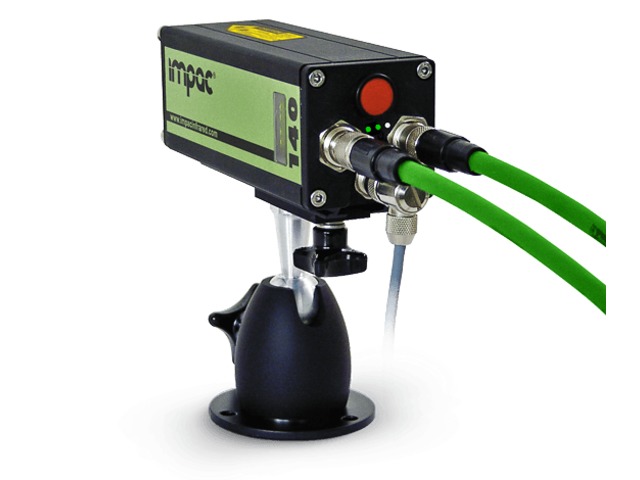

IMPAC Pyrometer IS 140-PN

Pyrometers

Ask for a quote

Presentation

Highly accurate, fully digital, fast Pyrometer with Profinet interface and focusable optics for non-contact temperature measurements on metals, ceramics, graphite etc. between 550 and 3500 °C.

The pyrometer IS 140-PN is a digital, highly accurate pyrometers for non-contact temperature measurement on metals, ceramics, graphite etc.

The PN types are equipped with a Profinet interface. They can easily be integrated in existing Profinet systems. As part of standard delivery, the GSDML (Profinet) offer a selection of 5 different module configurations for varying requirements. The project planning can be done with any project tool.

For optimal match of the instrument to the application, 3 different focusable optics with extremely small spot sizes are available.

The pyrometer parameters can be selected via the integrated key pad, the settings are indicated on the built-in LC-Display. In measuring mode the actual temperature is indicated.

A laser targeting light, a thrulens view finder or a color camera module (for standard versions only) for exact alignment of the pyrometer is available.

The color camera module enables the optical alignment of the pyrometer to the measuring object via video screen or monitor.

Technical features

Temperature ranges between 550 and 3500 °C Short response times < 1 ms optional 500 μm Extremely small spot sizes, min 0.35 mm Built-in digital display Optimized thru-lens view finder, laser targeting light or video module Test current output Housing with precision mounting rail for safe mounting and accurate alignment Built-in Profinet interface Focusable optics

Download the complete technical features
