Presentation

The indicator is compatible with the ARPEGE MASTER K digital load cells as well as with standard analogue ones using the CANDY A/D transmitter.

Excelent speed and stability of the measurement.
CE approved by the LNE according EN45501 – OIML R76-1/2006 and OIML D11/2013
The operator interface is user-friendly:

– LCD graphic backlit display of 128 x 64 pixels – dimensions 38 x 70 mm
– High brightness display (fonts height of 12 mm)
– User manual : – 2×16 characters
– or 1×8 characters

8 function keys:

– 4 metrologic keys (Zero – gross/ net – calibration- DSD)
– 4 application keys (weight memorization – cursor movement)

Adjustable mesure speed from 10 to 160 measures/second

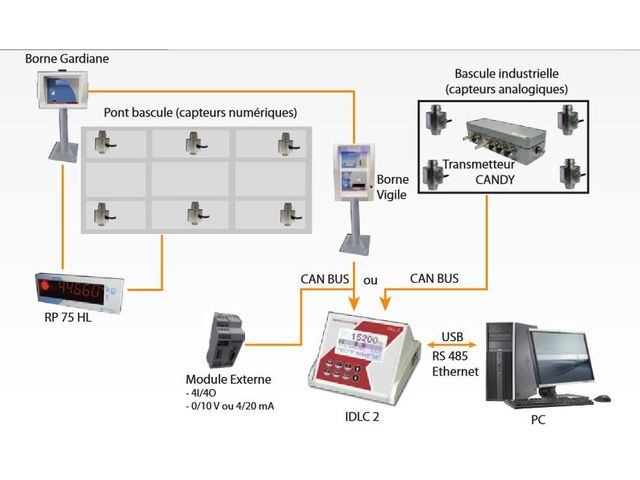

It can be conected to 1 up to 12 CPFN-A digital load cells or to 1 up to 4 CANDY. A/D transmitter.
Communications ports IDLC 2:

– 1 USB 2 port
– 1 Ethernet Modbus TCP port (multi-socket, 3 max)
– 1 RS 485 port (2 wires)
