Digital load cell : CPFN-A

Weight sensors

Ask for a quote

Presentation

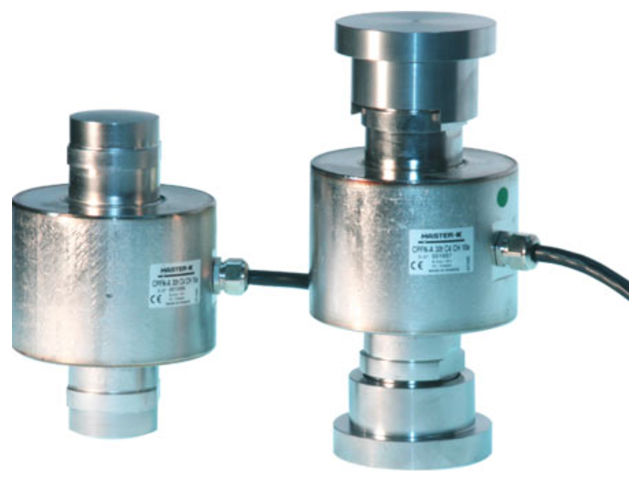

Main characteristics of the CPFN-A compression load cell for wheigbridge :

• Stainless steel compression load cell
• Capacity : 30 / 60 tons
• OIML R60 approval up to 5000 d
• Self-centering spherical bottom.
• Integrated anti-rotation system
• Anti- rodent shielded cable in standard.

CPFN-A load cell’s electrical characteristics :

• Voltage range : 7.5 to 16 Volts
• Insulation resistance : 5 000 MΩ / 50 Volts

Metrological characteristics of the CPFN-A digital load cell :

• Nominal capacity (Cn) : 30, 60 t (other possibilities, contact us)
• Combined error : ± 0.013 % Cn
• Zero drift in temperature: ± 0.0014 % Cn/ 0 C
• Sensibility drift in temperature: ± 0.0011 % Cn/ 0 C
• Creep (30 min): 0.018 % Cn

Mechanical characteristics of the sensor :

• Acceptable mechanical overweihght : 150 % Emax
• Temperature compensated range : -10 … +40 C°
• IP69 protection rating according to EN 60529
• Operating temperature range : -20 … +40 C°
• Material : Stainless steel
• Cable length : 15m
• Anti-rodent duct integrated to the cable
• Net weight : 3,4 kg

Options of the compression load cell for weighbridge :

• Mounting kit for compression load cell for weighbridge
• Complete mounting kit with integrated stops (ideal for modernizing old weighbridge)
• Mounting kit with a stabilization bar for weighbridge compression load cell
