Compression load cell TSL – From 5 to 30 t

- Mode fi eld diameter (at 1310 nm) (?m) : 9.2 ± 0.4.- Cladding diameter (?m) : 125 ± 1.- Coating diameter (?m) : 245 ± 5.- Cladding non-circularity (%) : < 1.- Core/Clad concentricity error (?m) :...

Ask for a quote

Presentation

APPLICATIONS

Weighing of hoppers, tanks and small and medium capacity silos, for non-trade use only.

GENERAL

The TSL load cell consists of a stainless steel body (according to IP 68). It is available in 4 capacities: 5, 10, 15, 30 t.
Its small size and ease of installation make it ideal for all industrial weighing applications.
It is available with a mounting kit for weighing silos, hoppers or tanks. This kit is made of stainless steel and it includes an anti-lifting device, a strip preventing lateral forces, and screw stands to simplify installation.

DESCRIPTION

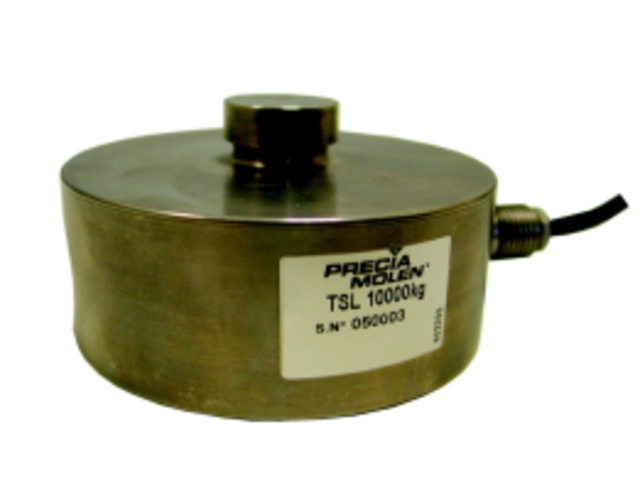

The TSL load cell is a low profile compression load cell made of welded hermetically sealed stainless steel.
Precision up to ± 0.05%. Spherical load button for optimum alignment of the load.
Allowable forces on the kit:

The maximum static horizontal force along the centre line of the locking strip (1) is 8 kN.
The maximum vertical tear off force is 20 kN for the 15 t kit and 35 kN for the 30 t kit.
EX OPTION

Ex version for use in gazous or dusty explosible zone according to new directive 94/09/CE.
Marking:

EEx II 2 D T80°C IP68.
EEx ia IIC T6 II 1GD.
