Shear beam load cell CMI – from 500 to 5000 kg

GENERAL INFORMATION

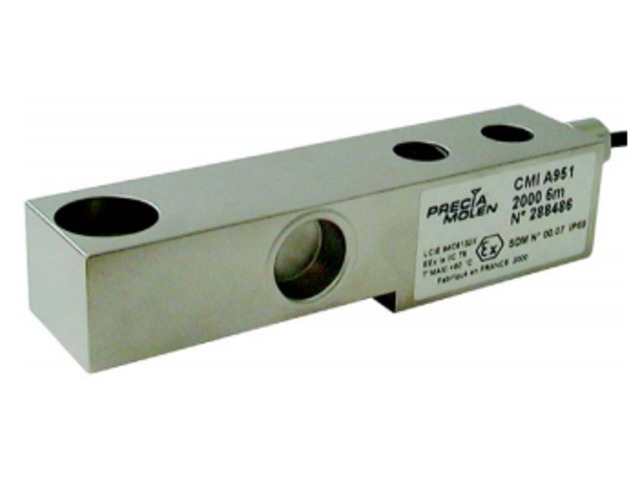

The CMI load cell consists of a stainless steel body and is hermetically sealed by laser welded stainless steel cups.

It has been designed for use in industrial environments with an aggressive atmosphere, such as the chemical industry. CMI load cells have a test certificate for 3 000 d. Meeting the IP 68 standard, CMI load cells are compact and available in four capacities: 500, 1 000, 2 000 and 5 000 kg.
Special mounting parts to adapt the load cell to its mechanical environment are available as an option.

DESCRIPTION

The working principle of the CMI load cell is to measure the deformation of a beam subjected to shear stress. The strain gauges are arranged to form a Wheatstone bridge, converting the mechanical force exerted on the load cell into an electrical signal.

CONFORMITY

Test certificate issued by a notified body in accordance with OIML recommendation R60.

EX OPTIONS

Ex version for use in explosive zone according to new directive 94/09/CE
CE EEx ia IIC T6
CE type certificate Nr : LCIE 02 ATEX 6083 X
