REALMECA

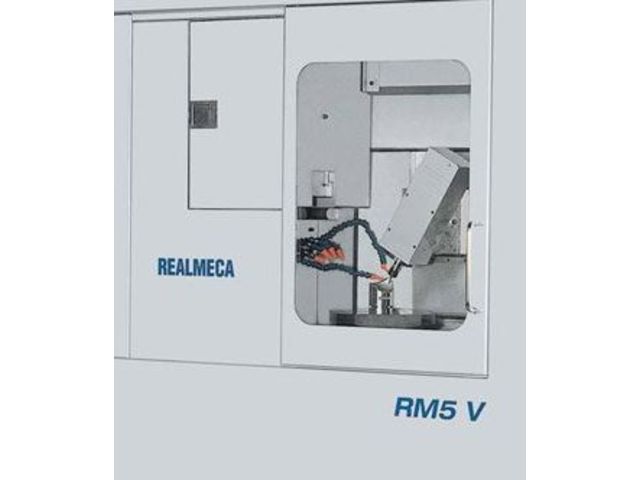

High-precision machining center : RM5 V

Machining centre

This sign indicates the presence of an exit straight ahead.In compliance with MFX 08003 ISO 6790/7010 Silk-screen printing Indoor and outdoor use Custom-made on request

Ask for a quote Receive Documentation Contact the supplier

Capacity

Stroke X : 300 mm
Stroke Y : 200 mm
Stroke Z : 250 mm
Stroke C : 360°
Stroke B : 100°/-10°

Spindle

HSK-E40 Tapper
Max, Spindle speed Rpm : 30.000
Power spindle motor : 13,8kW
SpindleTorque : 4,3 Nm
Spindle Taper

HSK-E25 Tapper
Max, Spindle speed Rpm : 40.000
Power spindle motor : 13,8kW
SpindleTorque : 3.2 Nm
Spindle Taper

Feedrate

Cutting feed : 30 m/mn
Rapid feed : 30 m/mn
Resolution : 0,1µ
A and B Axis Rpm : 30
Resolution :  0,001°

Automatic tool charger

Tool charger capacity HSK-E40 :15-30
Tool charger capacity HSK-E25 : 15

Clamping system

ITS Chuck : ITS 148

Dimension / weight

Length/ Width/ Height :1950*1800*2300 mm
Weight : 2800 Kg
