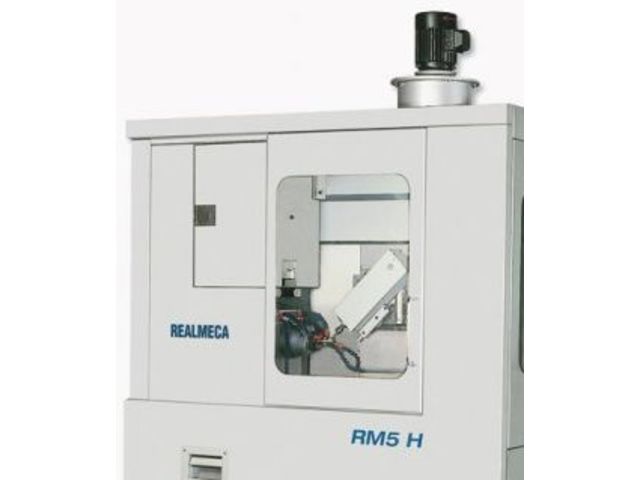

High-precision lathes and machining center - RM5 H

Machining centre

Ask for a quote

Presentation

CAPACITY
Stroke X : 300 mm
Stroke Y : 200 mm
Stroke Z : 250 mm
Stroke A : 360°
Stroke B : 100°/-10°

SPINDLE HSK-E40 Tapper
Max, Spindle speed Rpm : 30 000
Power spindle motor : 13.8 Kw
Spindle Torque : 4,3 Nm
Spindle Taper : HSK -E40

SPINDLE HSK-E25 Tapper
Max, Spindle speed Rpm : 40 000
Power spindle motor : 13.8 Kw
Spindle Torque : 3,2 Nm
Spindle Taper : HSK - E25

FEEDRATE
Cutting feed: 30 m/mn
Rapid feed: 30 m/mn
Resolution: 0,1µ
A and B Axis Rpm : 30
Resolution : 0,001°

AUTOMATIC TOOL CHARGER
Tool charger capacity HSK-E40: 15-30
Tool charger capacity HSK-E25: 15

CLAMPING SYSTEM
Collets F38 / W25 / W31,75

RECOVERY UNIT
Microcentric chuck
Clamping force, 140 Kg- 5 bars
Clamping range 1-3 mm

DIMENSION / WEIGHT
Length/ Width/ Height: 1950*1800*2300 mm

Weight: 2800Kg
