CNC Horizontal Milling Machines | WHB2150 / WHB2600 / WHB3200

Horizontal machining centre

Ask for a quote

Presentation

- Flexible heavy-duty machining

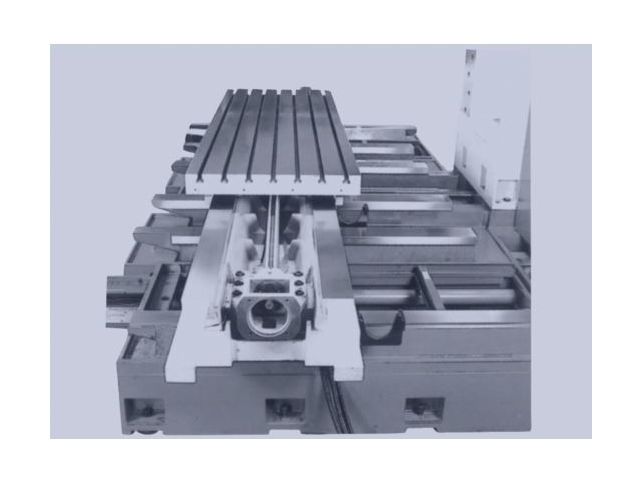

- cross table

- Heavy cast construction

- Stepless speed manually adjustable

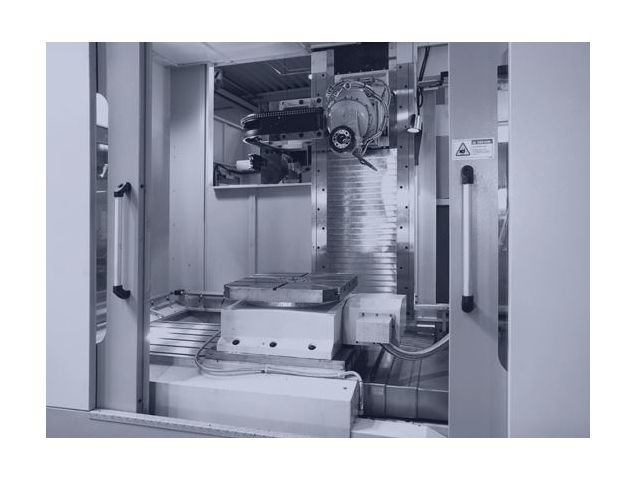

- Optional standard table version with attached rotary table

- Optional integrated round table (similar to a boring machine)

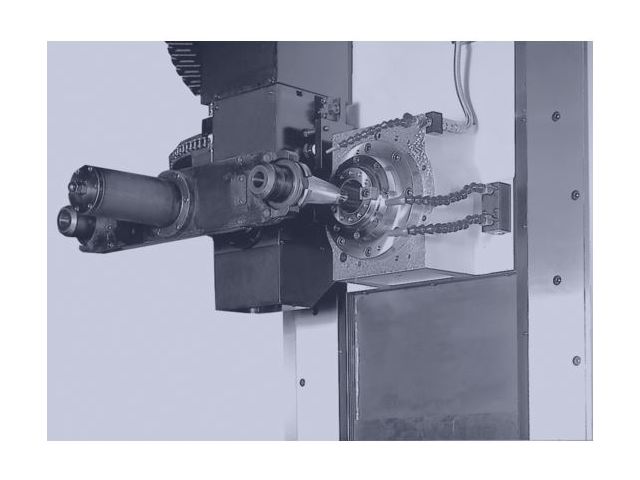

- Optional with H / V head

- Horizontal spindle output

- Tool changer horizontal or vertical

- Transverse of: 1.000-1.100mm

- Longitudinal path of: 1.400-3200mm

- Control: SIEMENS, FAGOR

Technical features

Clamping surface : 2200 x 1220 mm (WHB 2150), 2650 x 1220 mm (WHB 2600) / 3250 x 1220 mm (WHB 3200) Travel X / Y / Z : 2.150 x 1.100 x 1.400 mm (WHB 2600) / 2.600 x 1.100 x 1.400 mm (WHB 2600) / 3.250 x 1.100 x 1.400 (WHB 3200) Spindle speed, stepless : 6000 rpm (SK 50) / 8000 rpm (SK 40)
