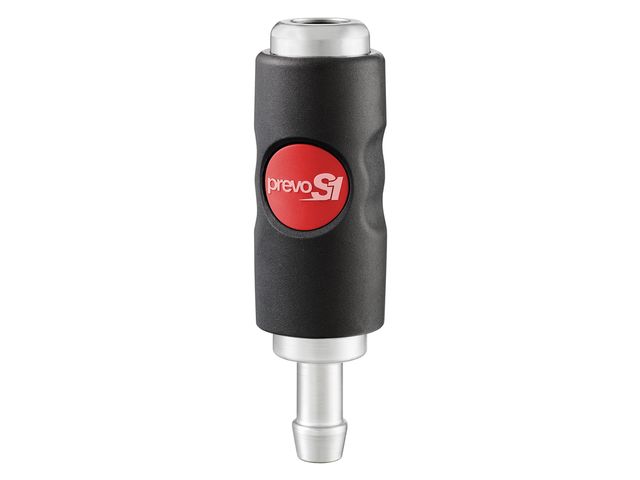

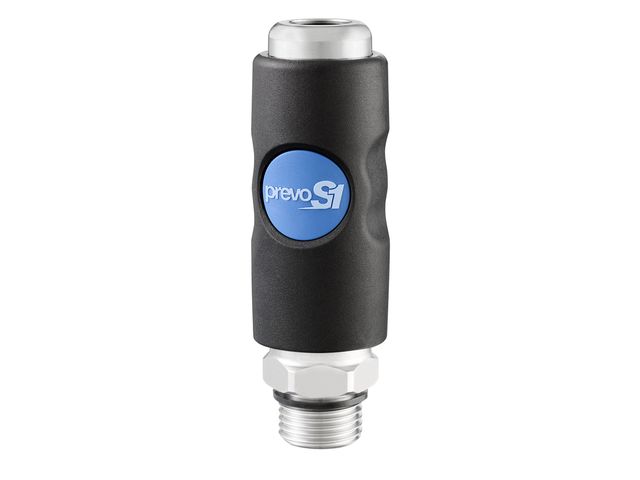

High-flow quick safety coupling Ø11mm

Quick pneumatic fitting

“ - High flow - Anti-scratch - Lightweight - Anti-static ”

Ask for a quote

Presentation

High quality, lifetime, innovation, safety and maximum efficiency characterise the prevoS1 range.
The prevoS1 quick safety coupling is resistant to abrasion, vibration, corrosion, shocks and crushing.

When combined with a PREVOST nozzle, the prevoS1 sealing mechanism eliminates any risk of leaks both in the coupled or decoupled position.

With the largest passage diameter in the prevoS1 range and a composite body, the new 11EB coupling is recommended for uses requiring high flow in garages, workshops and for industrial applications.

This new coupler is equipped with patented and protected single-pulse "One Push" technology (anti-whiplash security).

The new 11EB safety quick coupling is available in profiles I (ISO 6150 B, blue), U (Truflate, red) and E (European, green).

Technical features

Body : Polyamide composite Weight : 177g Weight : 6.25 oz Flow rate at 100 psi :142 cfm (ΔP = 10 psi) Flow under 6 bar : 3686 l/min (ΔP = 0.6 bar) Pressure : 2 to 12 bar Operating pressure : 29 to 174 psi

Download the complete technical features
