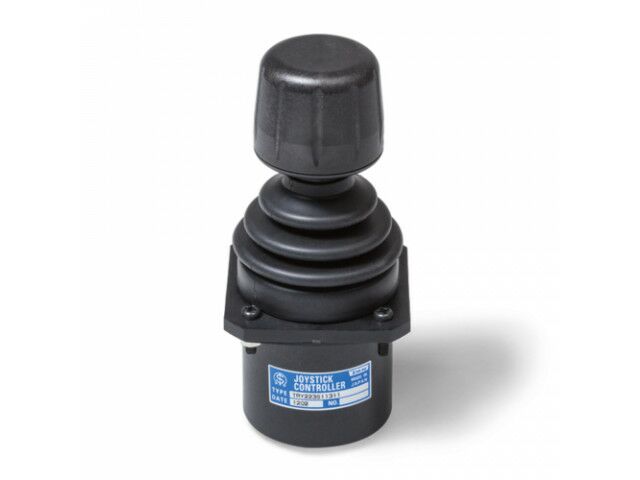

Fingertip joystick - TRY22

iiyama’s ProLite E2202WS-2 has an enviable price and performance ratio that beats even the market leaders and the latest specification features improved Dynamic Contrast Ratio of 3000:1 that is proven...

Ask for a quote

Presentation

Wherever durability and reliability are paramount, the TRY22 range of premium joysticks is the first choice for compact finger joysticks, with solid mechanical construction and high quality feel.
No other compact finger joystick matches the quality of the TRY22 series in terms of mechanics, materials and workmanship. The joysticks guarantee success in demanding applications with up to 3 axes, where no compromises are made in terms of durability and reliability.
Non-contact Hall technology ensures wear-free operation of the sensor. Redundant sensors are available as an option for safety critical applications. IP65 protection is standard on all rotary handle versions.
The high quality of manufacture results in a convincing haptic that enables the operator to precisely control machine movements for up to 3 axes, even in safety-critical applications.

Technical features

Technology: Hall effect,analog,2-axis,3-axis Applications: industrial,for medical applications,for aerial work platform Other characteristics: with buttons,fingertip,IP65,panel-mount Sensors: Hall effect Supply Voltage: 5 ± 0,5 VDC transient free Signal at center position: 2.50 ± 0.15 V Independent Linearity Tolerance: ±150 mV Supply Current: typ. 15 mA per axis Output Impedance: 10 kOhm Resolution: Infinite

Download the complete technical features
