Fingertip joystick - 847

Professional Joysticks

Ask for a quote

Presentation

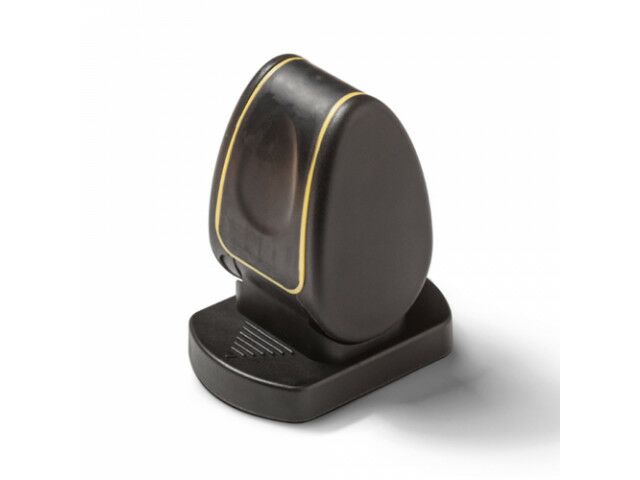

Premium feel combined with standard redundant outputs makes the 847 joystick the best choice for 1 axis applications where space is limited and safety requirements are high.

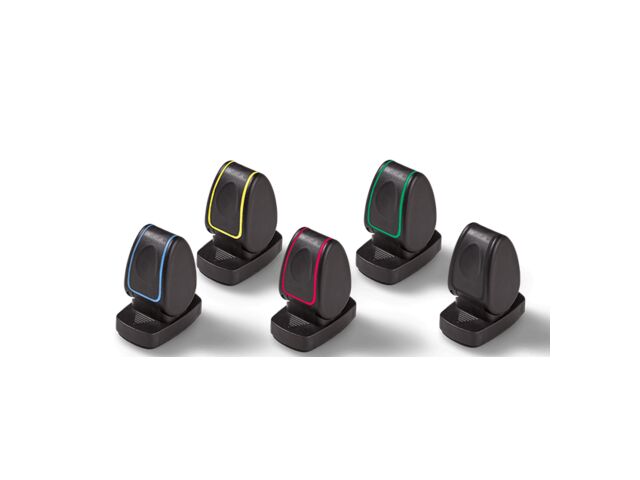

The 847 Series is a family of high precision, high quality paddle joysticks - a claim supported not only by the soft-touch moulded grips, but also by the technical features. Non-contact Hall technology combined with a smooth and easy-to-use mechanism results in a durable and reliable joystick, suitable for mild to extreme environments in mobile remote controls, agricultural vehicles and material handling.

Switching outputs available for different switching angles
Up to 5 detent positions optional for 60 mm version

Technical features

Technology: Hall effect,analog,single-axis,compact Applications: industrial,for remote control,for utility vehicles,for CCTV applications,for aerial work platform,for marine applications Other characteristics: fingertip,IP67 Sensor: Hall effect Supply Voltage (Vsupply): 5.0 ± 0.5 V transient free Center Voltage: Vsupply/2 ± 5% Current Consumption: < 20 mA Operating Temperature: -25 °C to +70 °C Storage Temperature: -40 °C to +85 °C Loads: Minimum 10 kΩ, >100 kΩ recommended

Download the complete technical features
