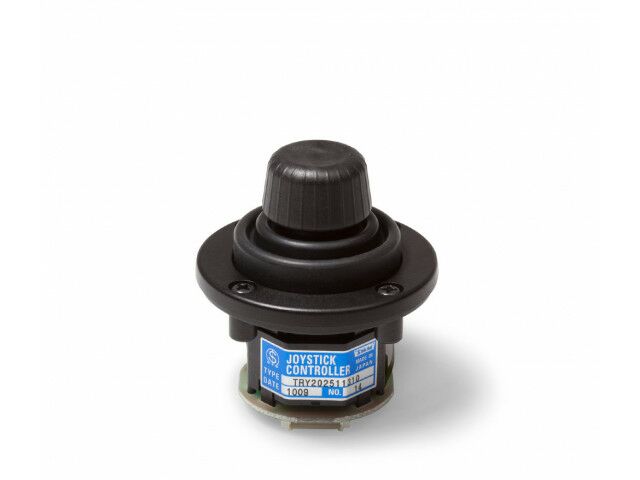

Thumb joystick - TRY20

Professional Joysticks

Ask for a quote Receive Documentation Contact the supplier

Unique: The TRY20 offers 3 axes and is still a compact thumb joystick
Unique in their class, the TRY20 Series joysticks feature a rotatable knob that acts as a z-axis, providing an additional proportional third degree of freedom to control the application.

The industrial joysticks are of the highest quality in terms of mechanics, materials and workmanship. The high quality haptics provide a secure feel and allow the user to precisely control movements in several dimensions. Dual outputs are available as an option, enabling use in safety-critical applications. IP40 protection (hard cover) and IP54 sealed (rubber bellows) versions are available. If the Z-axis (the rotatable knob) is not required, the 2-axis IP65 version can be implemented as a special variant.

The TRY20 is particularly suitable for the following requirements

When a thumb joystick is required for a control concept and a Z-axis is required to provide a third dimension directly on the joystick, there are advantages, for example, in controlling up and down movements in addition to movements in the plane.
When space in the panel is limited, but 3 axes control is still required.
When a particularly low height of the control above the panel is required (from 21 mm).

The TRY20 series is particularly popular for use in remote controls: the special freedom of movement of the thumb joint allows the user to control two dimensions comfortably and precisely by placing the thumb on the knob, similar to the use of game pads. For example, an unmanned vehicle can be controlled as it moves. The TRY20 can also be used to control an additional function, such as extending a telescopic arm, by turning the knob.

Technology: Hall effect,analog,2-axis,3-axis,compact Applications: industrial,for utility vehicles,for off-highway vehicle,for aerial work platform Other characteristics: IP65,panel-mount,fingertip Return to Center Voltage: ±250 mV Expected Life: > 1 million cycles Currents: ca. 6 mA per Axis Dielectric Strength: 1 minute at 250 VAC Shock: 294 m/s2 (30G) Operating Temperature-20°C to +60°C: -20 °C to +60 °C
Download the complete technical features
