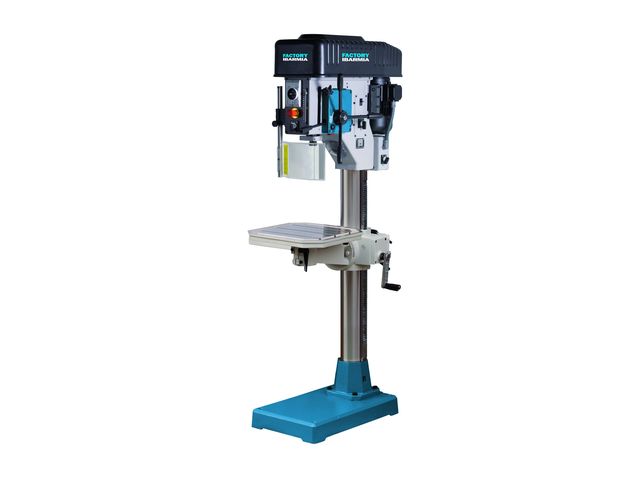

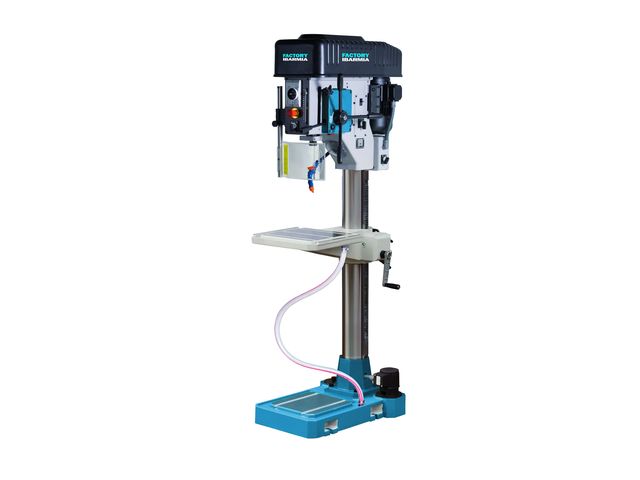

“ Excellent quality-price relationship supported by the company IBARMIA that is the world leader in manufacture of drilling and tapping machines since 1961. ”
STANDARD EQUIPMENT
Depth scale and adjustable depth stop
automatic tool ejector
Low voltage electric equipment
Security microswitch on cover
Emergency STOP push button
Spindle reversing switch
Electric equipment integrated on machine's head
Safety drill guard with microswitch
Table with "T" slots
"CE" mark
TECHNICAL CHARACTERISTICS:
Maximum drilling capacity on 60kg steel Ø mm
40
Maximum drilling capacity on 200HB. Cast iron Ø mm
45
Maximum tapping capacity on 60 kg. Stell mm
M 30
Maximum tapping capacity on 200 HB. Cast iron mm
M 32
Morse Taper MT Nr.
4
Drilling depth mm
150
Nr. and range of automatic feeds
Automatic
Feed mm/rev
(2)0.10-0.20
2 Speed Motor power CV
1,8/3,2
Transmission
Mechanical variator
Nr. of speeds
Variable
Speed range with motor 750/ 1500 rpm 50Hz 3Ph rpm
80-1.170
Table dimensions (W x L) mm
400 x 420
Column diameter mm
125
Distance from spindle centre to column face mm
300
Distance spindle - table mm
Min.150/Max.950
Distance spindle - base kg
1.310
Net weight kg
295
Gross weight with packing kg
345
Packing dimensions (lengh x width x height) m3
1.52
