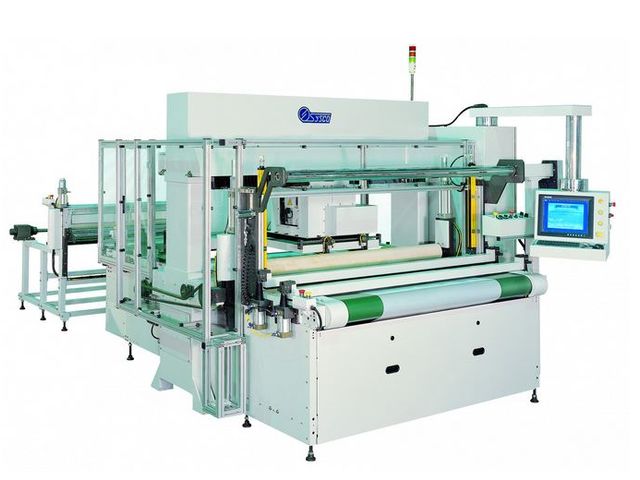

Material feeding from sheets or rolls. Pneumatic clamping beam feed with side guides to work several layers of materials without slipping.
-
Cutting power from 25 to 100 tons.
-
Fast and silent Hydraulic pump up to 80 cuts/min, air cooling.
-
Cutting area from 2100 x 500 to 2500 x 1200mm.
-

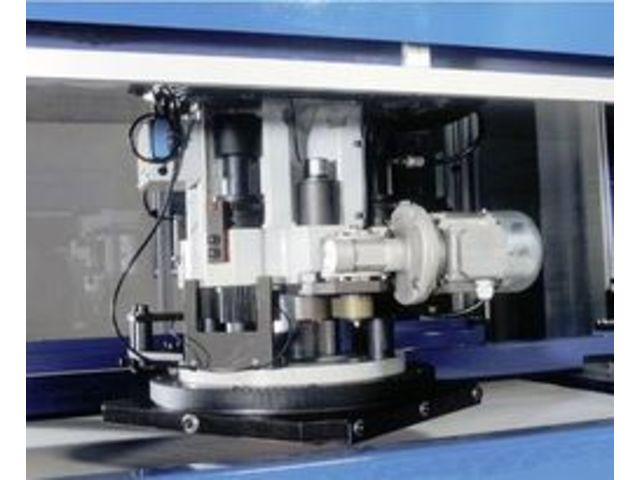

Cutting head from 500 x 500 mm to 900 x 900 mm, adjustable stroke up to 130 mm or 180 special version.
-
NYLON Cutting Belt.

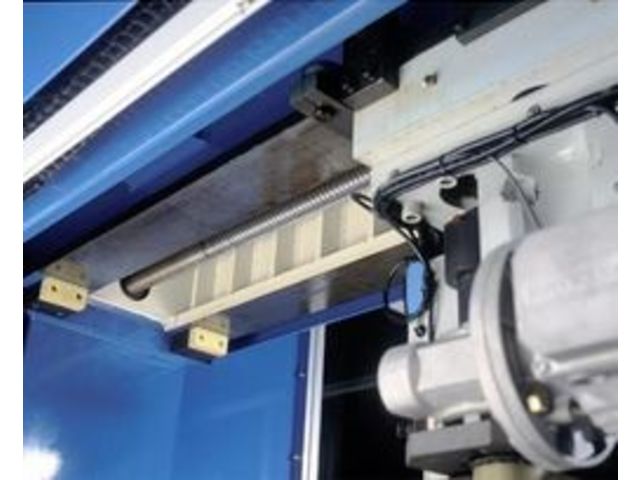

The travelling head movement is controled by servomotor and ball screw (2nd axis) with an accuracy of + or - 0.2 mm.
4 motorized adjustable mechanical stops ensure precise cutting depth accuracy + / - 0.02 mm and thus prolong the life of the belt or pad.
Use of standard electrical, hydraulic and pneumatic parts.
Safety guards with Plexi windows connected to the system shutdown and / or photocells Class 4 for strict compliance with CE
Available Options: head rotation 360 °, the 3rd axis of the CNC. Automatic nesting SYSNEST software saves up to 20% of material by optimizing the interlocking of the cuts.
Important Note: The cutting head is operated by a bridge with 4 columns and 2 cylinders connected by mechanical balancing system when the power of the press is above 40 tons.
Mecanic - aerospace - automotive - naval - railway
Foam - joint - rubber - abrasive
Packaging
Industrial textile - leather - EPI
