“ Key points :
• The use of this system must be entrusted to a user trained in a specific methodology. The flow speed at the sampling point must be known and communicated to CleanAir Europe for the feasibility of the project.
”
Ask for a quoteReceive DocumentationContact the supplier

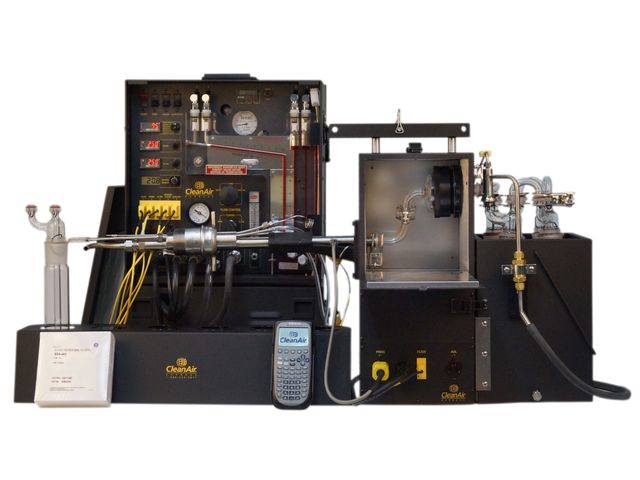

CleanAir Europe offers its "Express" isokinetic dust sampling system which allows a continuous sample of gases or vapors in a chimney while maintaining the same speed characteristics as at the sampling point. The particles are deposited on a filter. The hot gases are conditioned in a series of cold bubblers. The condensates are recovered and a volumetric meter (DGM) measures the flow of dry gas.
There are three methods:
Standard method (US EPA M5, EN 13284)
CATECO method for difficult access (US EPA M5, EN 13284)
Insitu method with filter in the duct (US EPA M17)

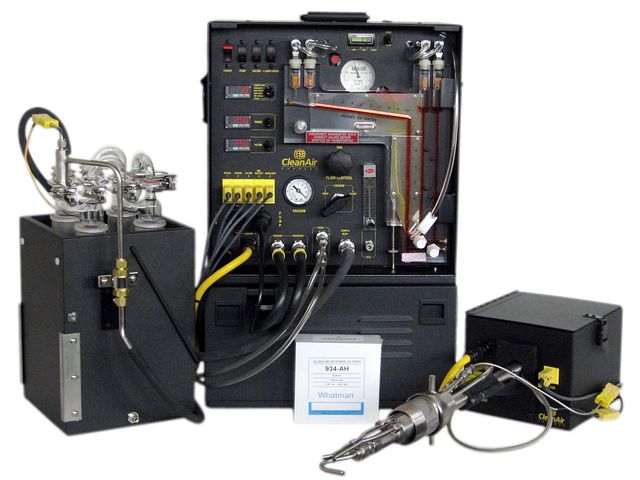

Composition:
• Control console for isokinetics and temperature regulation
• Vane pump

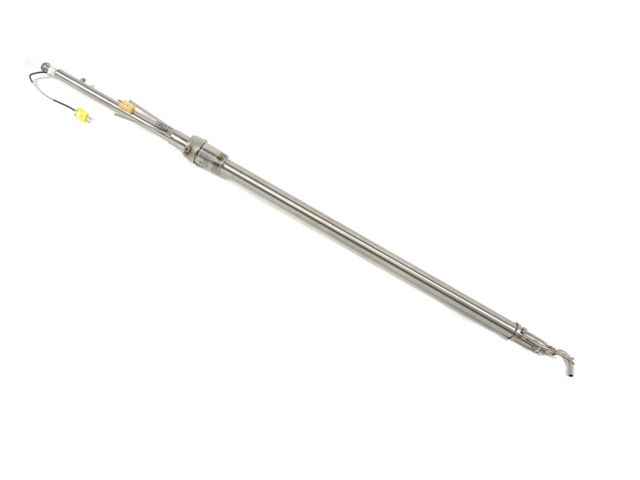

• Heated sampling probe equipped with a pitot tube and a thermocouple
• Set of sampling nozzles
• Heated oven with temperature measurement at the filtration point
• Filter set
• Connection umbilical
• Bubbler compartment, complete glassware set and outlet fitting
• Sample recovery kit
• Cable gland for waterproof probe mounting
• As an option, standardized port tape which can receive the cable gland.
Characteristics :
• CE marking in 115 V or 230 V
• Flow rate according to isokinetics and pressure drop up to 40 l / min
• Type K thermocouples
• 82.6 mm cellulose, glass or quartz filters
• Oven temperature 120 ° C
• Useful length of probes: 2 ’, 3’, 4 ’, 5’, 6 ’, 8’ and 10 ’(consult us for other lengths)
• Borosilicate, quartz, stainless steel, titanium, inconel sheaths
• Umbilical lengths: 7.5 m, 15 m or 30 m
• Nozzles according to EN 13284-1, ISO 9096: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 and 14 mm
• Nozzles according to US EPA 40 CFR 60: 1/8 ″, 3/16 ″, 1/4 ″, 5/16 ″, 3/8 ″ and 1/2 ″
Standards:
• US EPA method 5, EN 13284, ISO 9096, ISO 12140
