Electric roller

“ IP 42 CE certified Double grounding contact ”

Ask for a quote

Presentation

PLT 500

17 automatic cable reels
- From 2x1² to 5G2, 5²
- Until 18 meters
IP 42

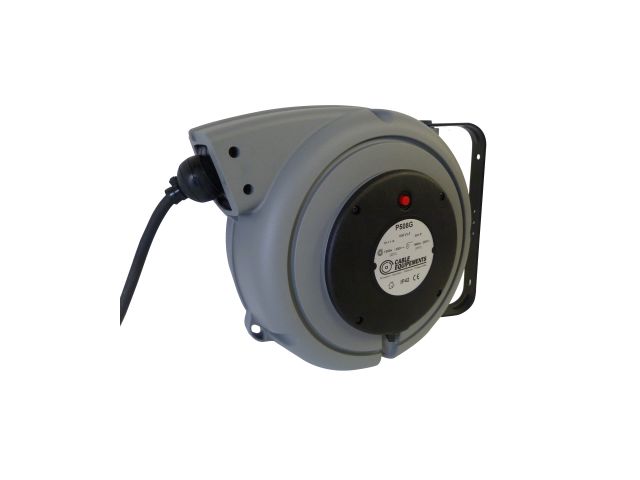

Black/yellow shockproof plastic housing. The P508 model (3G1, 5) is also available in grey colour (P508/G).
Swivelling bracket.
Detent ratchet every 50cm, easily removable if you want the cable to be in permanent traction.
Horizontal and vertical use. If vertical use, free option mandatory which turns the swivelling bracket into a fixed one (code ERXP5V).
Thermic protection on models with 2 and 3 conductors.
The indicated length includes 1 meter outside the reel.
Supplied without power supply cable.

In option for 3G1, 5² and 3G2, 5² models:

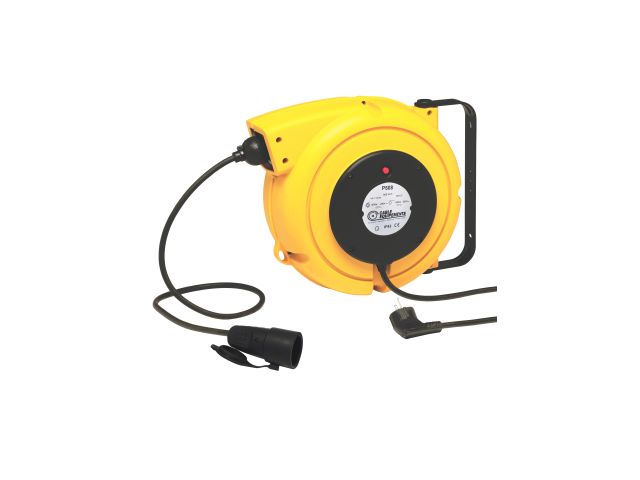

- Single extension cord kit (mounted):
Input, cable and 2P+T male jack; output, 2P+T female jack with check valve (code ERXP1)

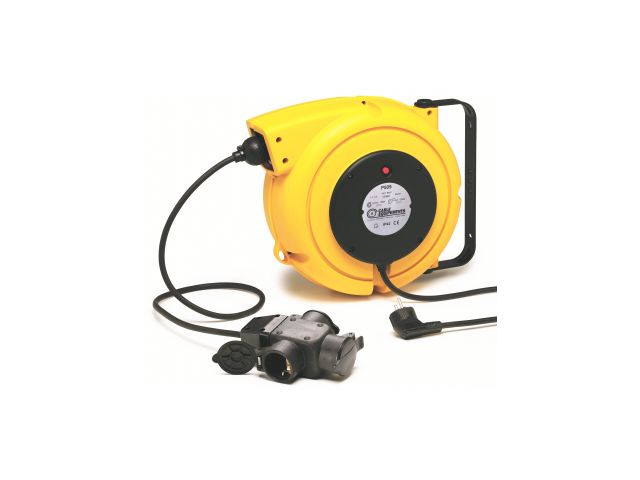

- Triple extension cord kit (mounted):
In input, cable and 2P+T male socket; in output, 2P+T triple socket with valve (code ERXP3)

CE certified
Double grounding contact
Collector isolation voltage 2.5 kV
Roller cable guide device
Use temperature - 5 °C/+50°C

Dimensions (including bracket): H 290 x W 350 x D 160 mm
Around 5 kg
