Automatic cable reels-PLT 800 RANGE

Electric roller

For 100 to 3,150 kVA transformers as standard, inductance coils, capacitors etc... Total containment of the dielectric fluid. Directly installed on the ground and removable walls for easy...

“ IP42 CE certified. 8 automatic cable reels' range Double grounding contact. ”

Ask for a quote

Presentation

PLT 800

8 automatic cable reels' range
- From 2 to 5 condcutors
- From 1, 5 mm² to 2, 5 mm²
- Until 27 meters
IP42

Grey shockproof plastic housing.
Swivelling bracket.
Detent ratchet every 50cm, easy to insert if you want the cable to be in permanent traction.
Horizontal and vertical use. If vertical use, free option mandatory which turns the swivelling bracket into a fixed one (code ERXP8V).
The indicated length includes 2 meters outside the reel.
Supplied without power supply cable.

In option for 3G1, 5² and 3G2, 5² models:

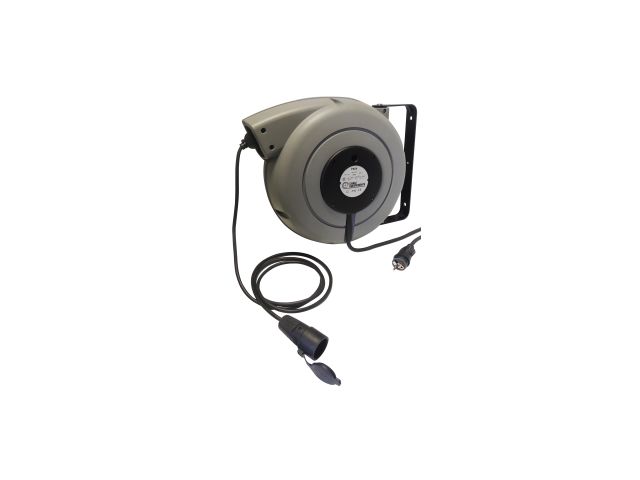

- Single extension cord kit (mounted):
Input, cable and 2P+T male jack; output, 2P+T female jack with check valve (code ERXP1)

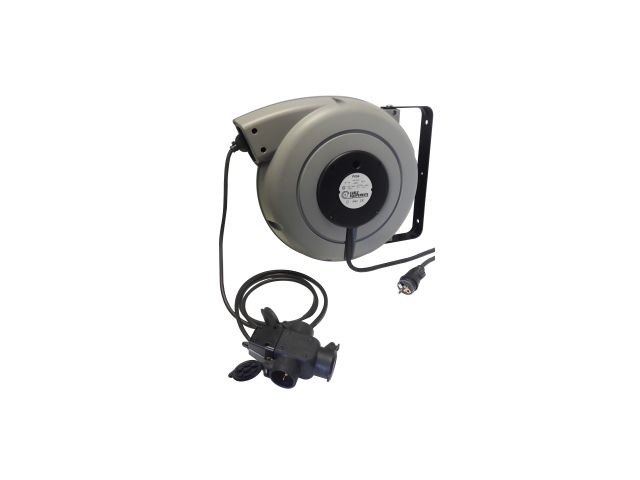

- Triple extension cord kit (mounted):
In input, cable and 2P+T male socket; in output, 2P+T triple socket with valve (code ERXP3)

CE certified.
Double grounding contact.
Collector isolation voltage 2.5 kV.
Roller cable guide device.
Brass ring collector and brushes.
Use temperature - 5 °C/+50°C.

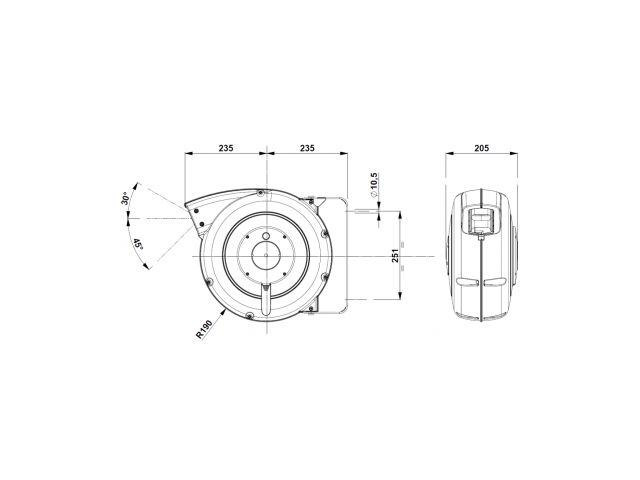

Dimensions (including bracket): H 380 x W 470 x D 205 mm.
8 to 10 kg.

Technical features

Grey shockproof plastic housing. Swivelling bracket. Collector isolation voltage 2.5 kV. Use temperature - 5 °C/+50°C. Length : from 1 to 27 m Weight: from 8 to 10 kg

Download the complete technical features
