Automatic cable reels- ALU 700S/65 RANGE

Electric roller

“ Aluminium case - IP65 CE certified. ”
Ask for a quote Receive Documentation Contact the supplier

Aluminium case - IP65

20 industrial automatic cable reels' range
- From 1 to 8 condcutors
- From 1 mm² to 16 mm²
- Until 26 meters
IP65

Aluminium case with rubber protective bellows.
Swivelling bracket.
Detent ratchet every 50 cm, easy to insert if you want the cable to be in permanent traction.
Horizontal and vertical use. If vertical use, free option mandatory which turns the swivelling bracket into a fixed one (code ERXP6A7V).
Some models have a reinforced collector.
The indicated length includes 2 meters outside the reel.
Supplied without power supply cable.

In option for 3G1, 5² and 3G2, 5² models:
- Single extension cord kit (mounted):
Input, cable and 2P+T male jack; output, 2P+T female jack with check valve (code ERXP1)
- Triple extension cord kit (mounted):
In input, cable and 2P+T male socket; in output, 2P+T triple socket with valve (code ERXP3)

CE certified.
Double grounding contact.
Collector isolation voltage 2.5 kV.
Roller cable guide device.
Brass ring collector and brushes.
Use temperature - 5 °C/+50°C.

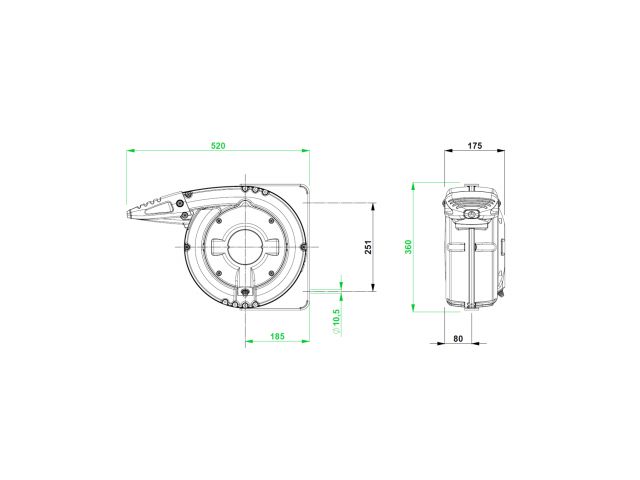

Dimensions (including bracket): H 360 x W 520 x D 175 mm.
Around 14 kg.

Aluminium case - IP65 20 industrial automatic cable reels' range Use temperature - 5 °C/+50°C. Weight : Around 14 kg.
Download the complete technical features
