Presentation

PLT 600:

25 automatic cable reels' range
- From 1 to 8 condcutors
- From 1mm² to 16 mm²
- Until 16 meters
IP42 (the following models P606/65 and P613/65 are IP65).

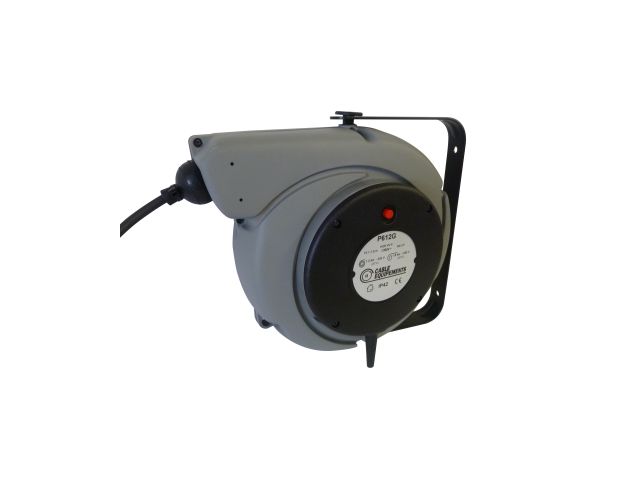

Yellow shockproof plastic housing (the P612/G is in grey colour).
Swivelling bracket.
Detent ratchet every 50cm, easily removable if you want the cable to be in permanent traction.
Horizontal and vertical use. If vertical use, free option mandatory which turns the swivelling bracket into a fixed one (code ERXP6A7V).
Some models have a reinforced collector.
The indicated length includes 1, 50 meter outside the reel.
Supplied without power supply cable.

In option for 3G1, 5² and 3G2, 5² models:

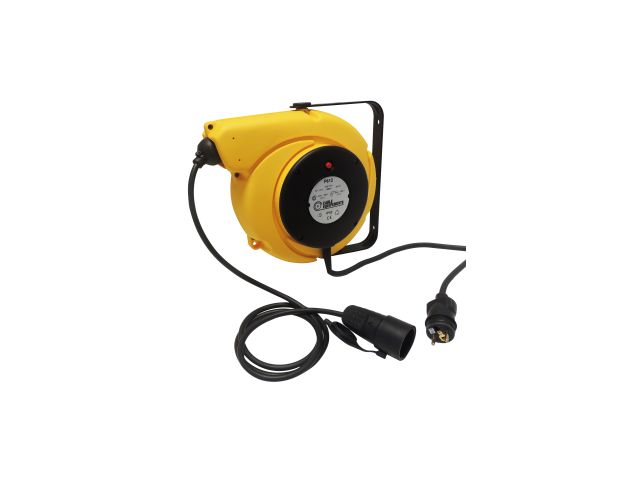

- Single extension cord kit (mounted):
Input, cable and 2P+T male jack; output, 2P+T female jack with check valve (code ERXP1)

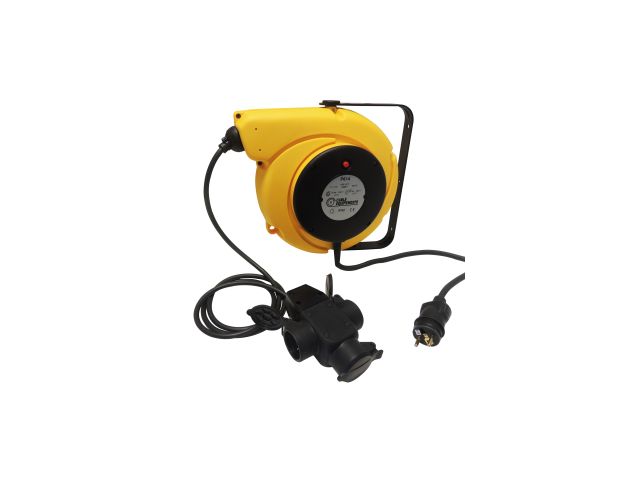

- Triple extension cord kit (mounted):
Input, cable and 2P+T male socket; in output, 2P+T triple socket with valve (code ERXP3)

CE certified.
Double grounding contact.
Collector isolation voltage 2.5 kV.
Roller cable guide device.
Brass ring collector and brushes.
Use temperature - 5 °C/+50°C.

Dimensions (including bracket): H 280 x W 305 x D 145 mm.
Around 4 kg.
