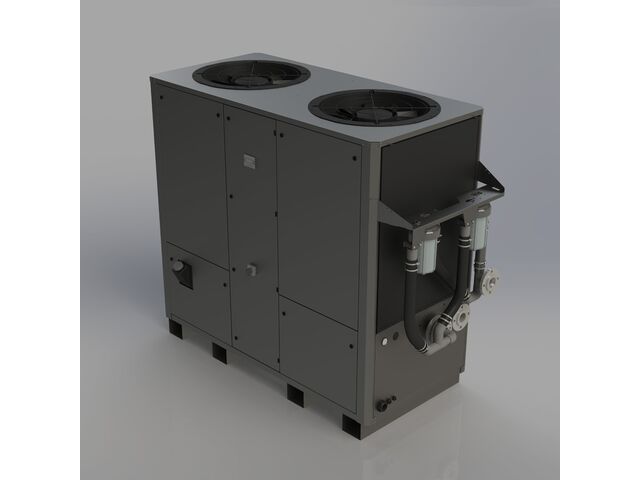

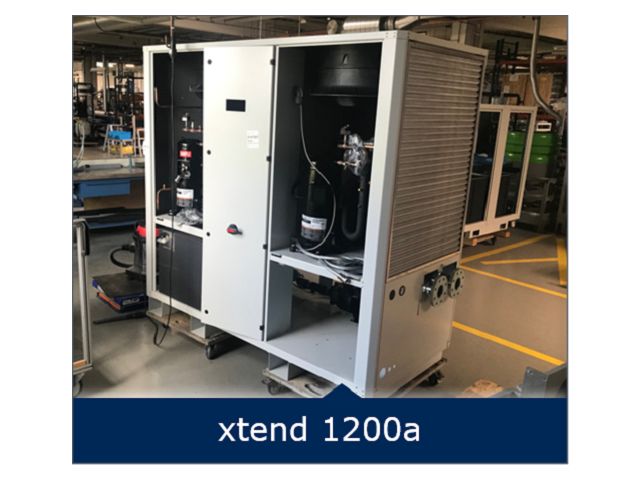

Xtend.line: high efficiency chillers

Xtend.line: high efficiency chillers - TECHNOTRANS FRANCE

Xtend.line: high efficiency chillers - Chillers

Xtend.line: high efficiency chillers - produit présenté par TECHNOTRANS FRANCE

Xtend.line: high efficiency chillers

Chillers

Ask for a quote

Presentation

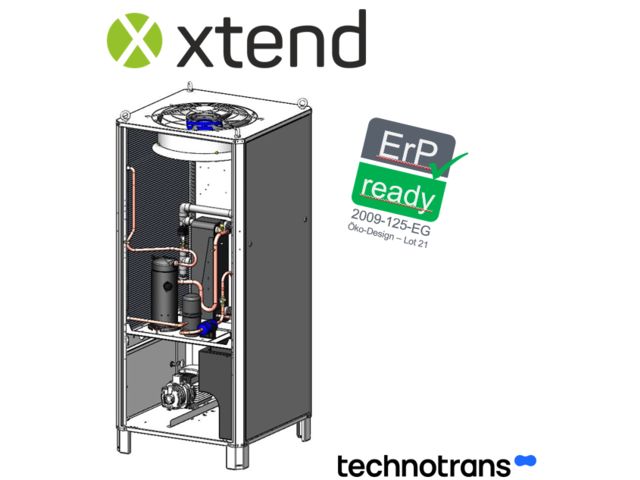

Advanced cooling technology
R410A refrigerant (type VI-VIII R513A)
BLDC compressors (type VI Tandem/Trio compressors; type VII-VIII screw compressors)
Speed controlled fans
Optional speed-controlled pumps
Control accuracy: Up to +/- 0.5K
Electric expansion valve
Up to two cooling circuits
Optimized tank volume

xtend.line chillers reduce operating costs and contribute to environmental protection.
All internal components contribute to maximum energy efficiency, especially during part-load operation (up to 30% less).
The cooling capacity provided is continuously adjusted to the actual process requirements.
Micro-channel condensers allow for minimal refrigerant usage (up to 60% less).
Unit control allows precise adjustment of parameters
Optimized receiver volume avoids using and cooling more refrigerant than necessary.
All xtend.line chillers are designed in the most compact and efficient way.

Cooling capacity per m²:
Type I: 18,77kW
Type II: 35,50kW
Type III: 40,63kW
Type IV: 60,00kW
Type V: 57,69kW
Type VI: 37,17kW
Type VII: 25,71kW
Type VIII: 36,35kW
