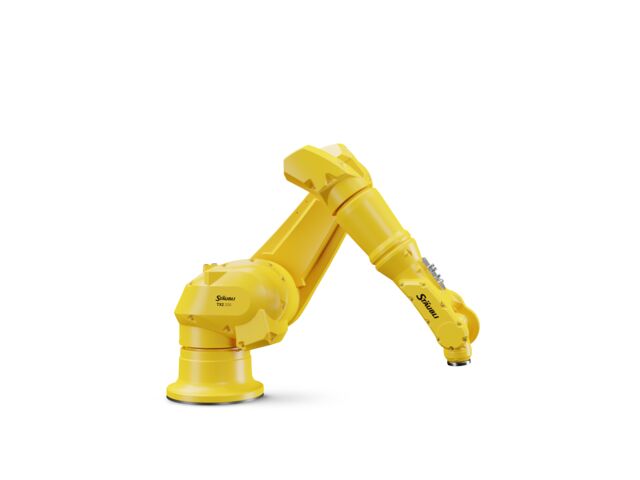

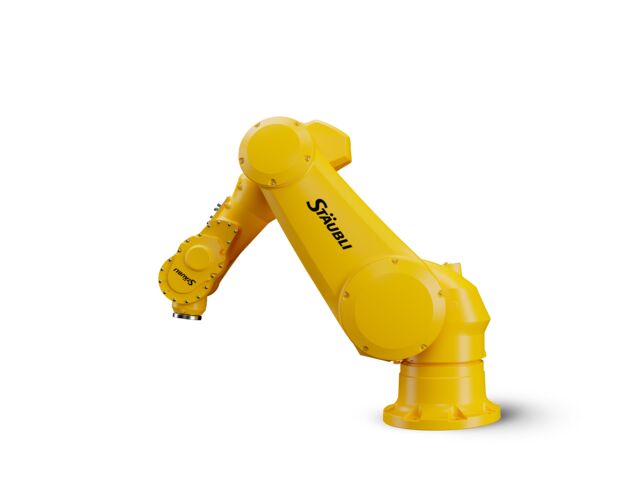

The TX2 robots are the next generation of 6-axis robotic arms. This range of industrial robots offers the perfect balance between speed, rigidity, compactness and precision. Thanks to their unique features, these robots are suitable for all industries, including sensitive environments.
Its optional SIL3-PLe safety features enable high productivity thanks to more compact but more efficient cells.
The TX2-200 has a payload of 170 kg and a maximum range of 2609 mm.
TX2-200 ADVANTAGES
Integration flexibility, modular and scalable
Reliability, easy maintenance and cleanliness
Open Architecture : VAL 3, uniVAL plc, uniVAL drive
Unique and modular SIL3-PLe safety functionalities
Energy efficiency
Degrees of freedom : 6Load capacity TX200 : 170 kg | TX200L : 110 kgReach TX2-200 : 2209 mm | TX2-200L :2609 mmRepeatability TX2-200 : ± 0.045 mm | TX2-200L : ± 0.055 mmProtection class (wrist) : IP65 (67)Attachment methods : Floor or ceilingStäubli controller : CS9 HP
