“ Latest generation of integrated torque, speed and angle conditioning ”

Ask for a quote

Presentation

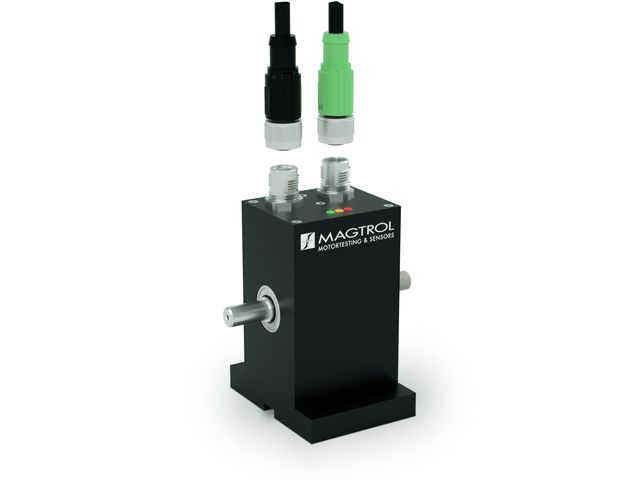

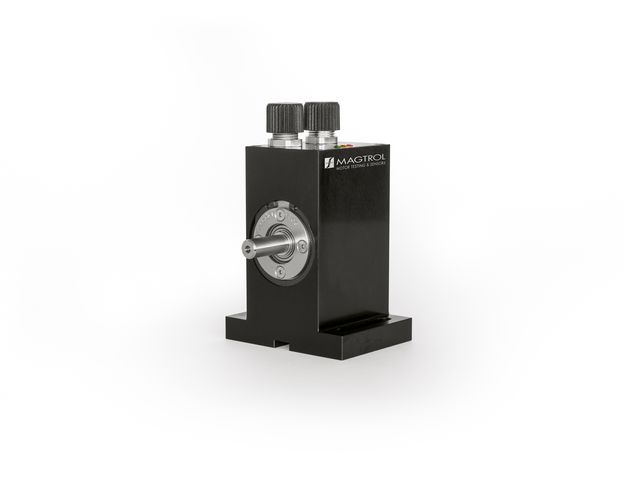

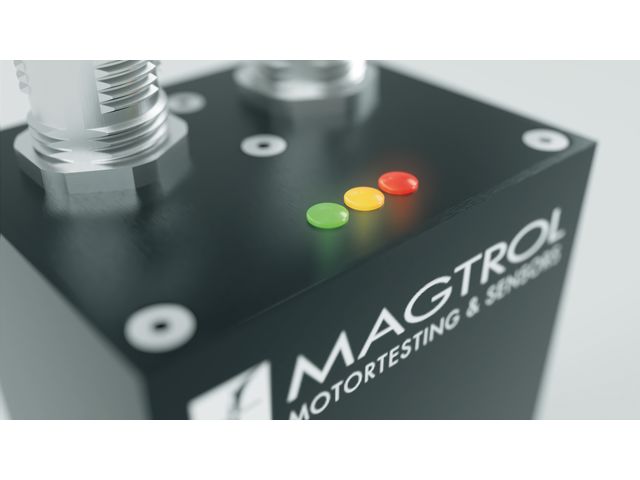

Magtrol’s TS Series In-LineTorque Sensors provide extremely accurate torque and speed measurement. Each model has an integrated conditioning electronic module providing 0 VDC to ± 10 VDC torque output through an 8-pole connector, as well as a USB interface which can be directly connected to a computer. The sensor is delivered with software allowing easy connection and data acquisition. A speed encoder provides 360 pulses / rev. in Tach A, Tach B and Index reference Z (1 pulse / rev.). Magtrol Torque Sensors are very reliable, providing high overload protection, excellent long-term stability and high noise immunity. TS Series sensor models are strain gauge-based measuring systems with imbedded telemetry signal transmission. Three LED lights located on the sensor cover allow a visual check of the sensor status by color
code (combination of the 3 LEDs). The sensor is powered by 24 VDC (12 - 32 VDC) through its 8-pole connector. Tare &
B.I.T.E. (Built-In Test Equipment) can be activated by either software or input from the 8-pole connector. Available torque
ranges from 0.02 N·m to 500 N·m.

Technical features

Integrated torque, speed and angle conditioning Torque range: from 0.02 N·m to 500 N·m Integrated speed encoder with index Accuracy: < 0.1 % Overload capacity: 200 %; Overload limit: 300 % Speed range: up to 15 000 rpm Torque output: ± 5 VDC (± 10 VDC) USB interface & analog connection LED operating status control Single DC power supply: 12 - 32 VDC

Download the complete technical features

Usage scope

Torque Measurment Motor Testing, Motor Test Bench, loaboratory Automotive industry Pumps - water and oil, Reduction gears and gearboxes, Clutches, Motorized valves & actuators, Drills, pneumatic tools and other machine tools Torque & friction measurement in medical devices and the watch industry
