Presentation

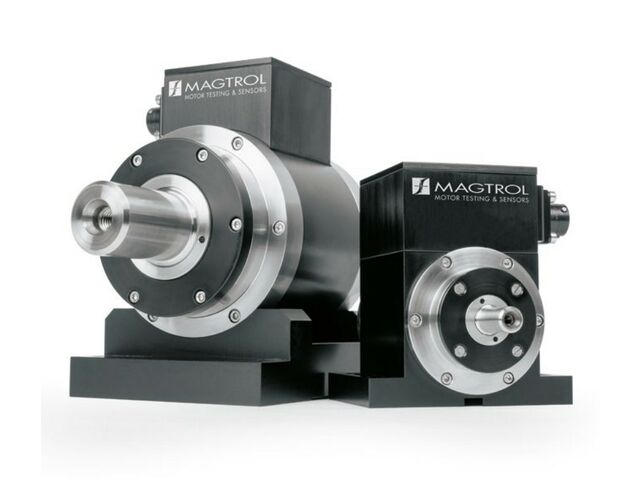

Magtrol’s In-Line Torque Transducers provide extremely accurate torque and speed measurement over a very broad
range. Each model has an integrated conditioning electronic module providing a 0 VDC to ±10 VDC torque output and an open collector speed output. Magtrol Torque Transducers are very reliable, providing high overload protection, excellent long term stability and high noise immunity.

All transducer models employ our unique non-contact differential transformer torque measuring technology. This measuring technology offers many benefits, most notably that no electronic components rotate during operation.

To provide customers with several price/performance options, Magtrol offers three torque transducer models: basic model (TMB Series), high accuracy (TM Series) and high speed with high accuracy (TMHS).

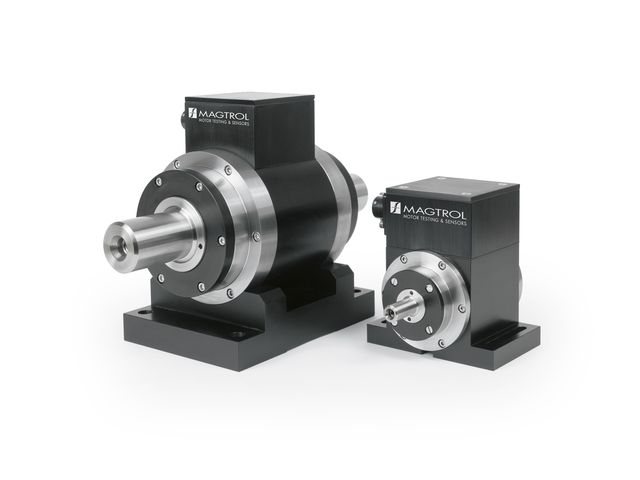

Each transducer consists of a hardened stainless steel shaft with smooth, splined or keyway shaft ends, an anodized aluminium housing containing the guide bearings and an electronic measurement conditioner.

The integrated electronic circuit, supplied by single DC voltage, provides torque and speed signals without any additional amplifier. The transducer is a stand-alone measuring chain. Connections are made by means of a 6-pole male connector mounted on the housing. A removable aluminium base (delivered as standard with TM and TMHS models, and as an option for TMB transducers) allows fixed mounting of the transducer.

Technical features

Integrated torque and speed conditioning Torque Range: from 0.1 N·m to 10 kN·m (0.07 lb·ft to 7375 lb·ft) Accuracy: < 0.1 % Overload Capacity: 200 %; Overload Limit: 400 % High Speed Applications: up to 50,000 rpm Non-Contact (no sliprings); No Electronic Components in Rotation High Electrical Noise Immunity Tension d’alimentation: 20 VDC à 32 VDC Bande passante du filtre du signal de couple réglable jusqu'à 5 kHz Test de fonctionnement intégré (BITE)
