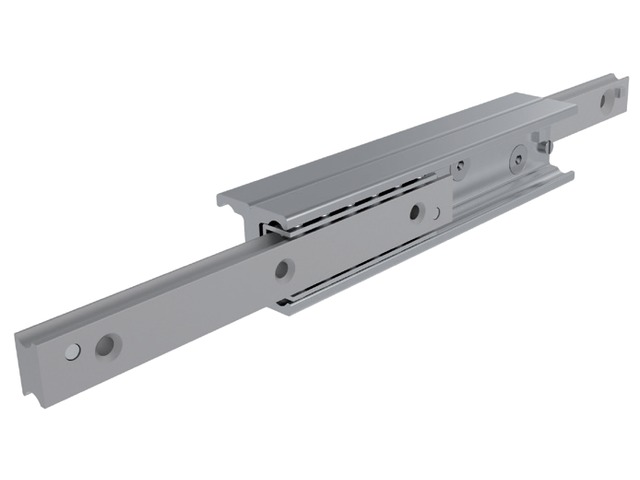

Telescopic rails LSE allow a stroke equal to the length of the closed rail, thanks to the intermediate element that acts as a bridge between the two sliders.

LSE guides allow a smooth and regular movement and are the perfect solution for all the applications requiring a total telescopic extraction.

LSE guide rail is available in two sizes, LSE28 and LSE43, and several standard lengths (on request different rail lengths can be provided that will be managed as special items).

Load capacities

Telescopic rails with ball cage have preferential load capacity with the mounting on the side (major axis).

Ideal mounting configuration is realised with two parallel guide rails, with the load to be moved uniformly distributed on the moving elements.

Mounting of the guide rail to the structure and of the external load to the sliders should involve all available holes of the components.

Available hole configurations

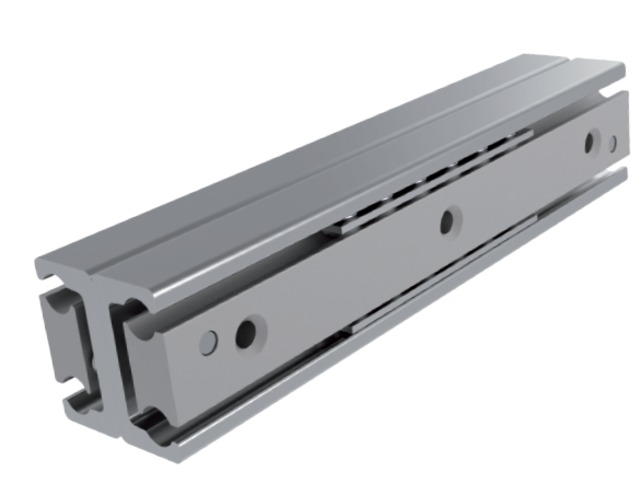

LSE telescopic rails are available with countersunk holes (suffix V) and threaded holes (suffix F), or in the mixed version (suffix M), with one slider with countersunk holes and one slider with threaded holes.

Double stroke

In order to obtain the double stroke and allow the slider to escape in both directions, please remove the screw at the edge of the intermediate element.
