NADELLA

Semi-telescopic rails LST

Telescopic slides

Ask for a quote Receive Documentation Contact the supplier

Semi-telescopic rails LST of Nadella allow the partial extraction of the slider which escape for more than half its length from the edge of the rail, while maintaining a smooth and regular movement through the interposition of a robust metal ball-cage.

The perfect solution for all applications requiring a protruding extraction. LST guide rail is available in two sizes, LST28 and LST43, and several standard lengths (on request different rail lengths can be provided that will be managed as special items).

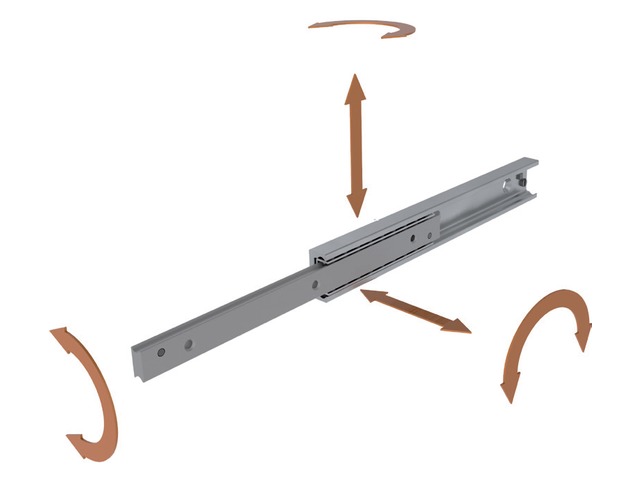

Load capacities

Semi-telescopic rails with ball cage have preferential load capacity with the mounting on the side (major axis).

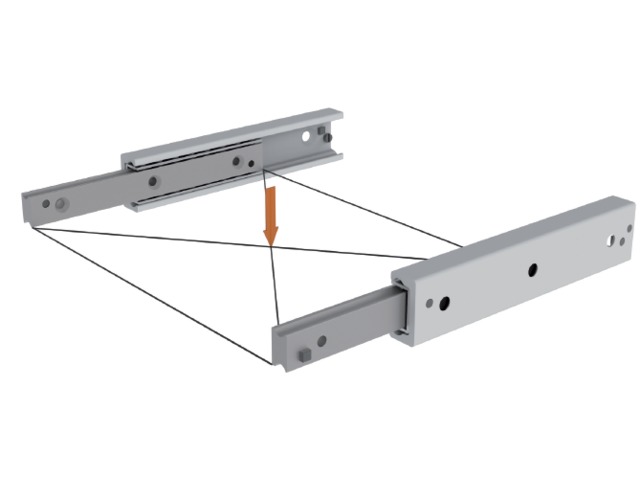

Ideal mounting configuration is realised with two parallel guide rails, with the load to be moved uniformly distributed on the moving elements.

Mounting of the guide rail to the structure and of the external load to the sliders should involve all available holes of the components.

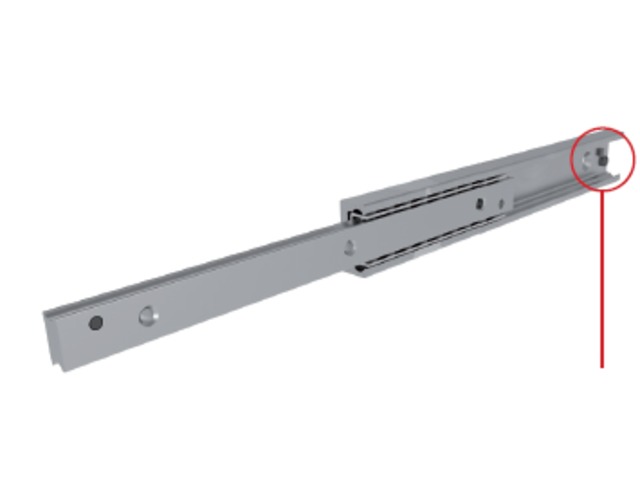

Double stroke

In order to obtain the double stroke and allow the slider to escape in both directions, please remove the screw at the edge of the rail.

Download the complete technical features
