EMKA Beschlagteile GmbH & Co. KG

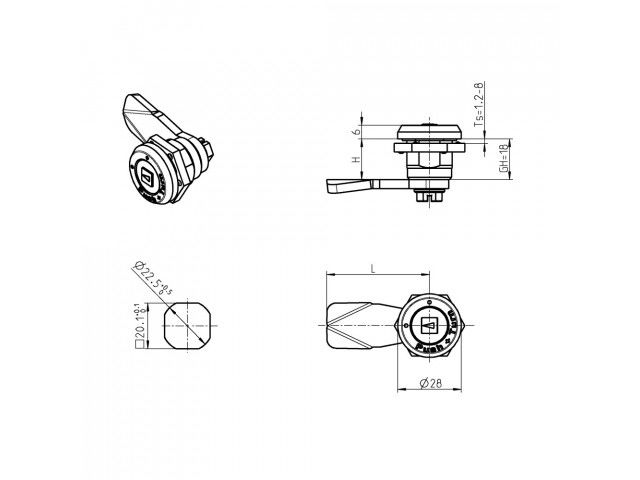

Stainless steel safety quarter turn with mask

Assembly systems and components

Ask for a quote Receive Documentation Contact the supplier

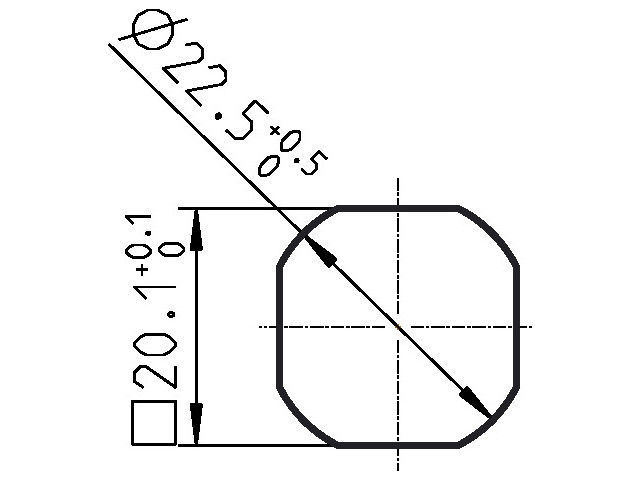

EMKA offers a comprehensive product range of ingenious locking technology from a single source. The modular program structure allows a unique variety of components: quarter turns, locking-systems, handles, hinges and gasketings. The high quality and product standards are guaranteed by an excellent manufacturing know-how and by the certified process control according to ISO 9001. This lock is of vibration proof design. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required. Version double bit: Key only removable in locked position. Keyhole for double bit according to DIN 43668. Note: only cams without a stop can be used! The H-dimension will be reduced by 2 mm when a finger pull is installed (see catalogue page 1C-320).

Download the complete technical features
