Stainless steel pyrometers from -100 to 3000°C | CT13 and CT15

Stainless steel pyrometers from -100 to 3000°C | CT13 and CT15 - HEITRONICS INFRAROT MESSTECHNIK GMBH

Stainless steel pyrometers from -100 to 3000°C | CT13 and CT15 - Pyrometers

Stainless steel pyrometers from -100 to 3000°C | CT13 and CT15

Pyrometers

Immediate and error-free copy-routing with templates.Simple use. Vast work capacity. Machining on two faces through pneumatic rotation of the clamps.Execution of through machinings.Ergonomic handgrip...

Ask for a quote

Presentation

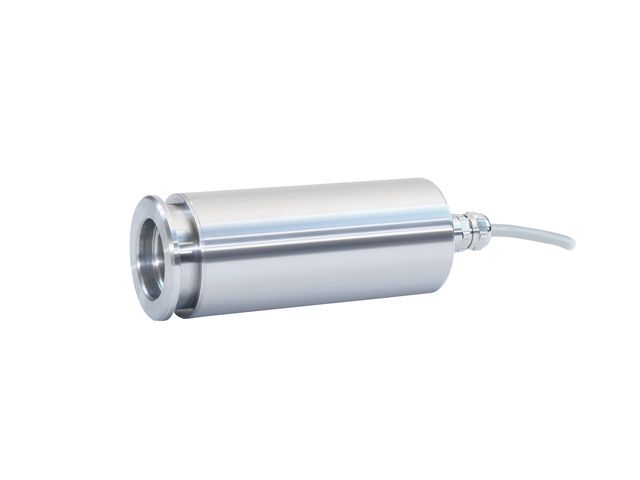

These stainless steel thermometers are classified as IP68, for clean processes, food or even difficult industrial environments.

They are available on request for temperatures between -30 and 900 degrees Celsius, fully adjustable such as the emissivity factor or the response time from 50 ms.

A set of lenses starts the size of the measuring field from 1 mm.

Very high temperature stability by pulsed radiation method
    Sturdy stainless steel IP68 speaker
    Very high resolution 0.03oC
    Fast response times from 5

Production and machining of

rubber
    Plastic
    Ceramics
    Paintings
    Food
    Textiles
    - - -
    Glass / Quartz
    Metals

IP 68 Rating
    Preventive and drift-free measures
    Small fields of measurement
    Extreme environmental conditions
    Very fast measurements

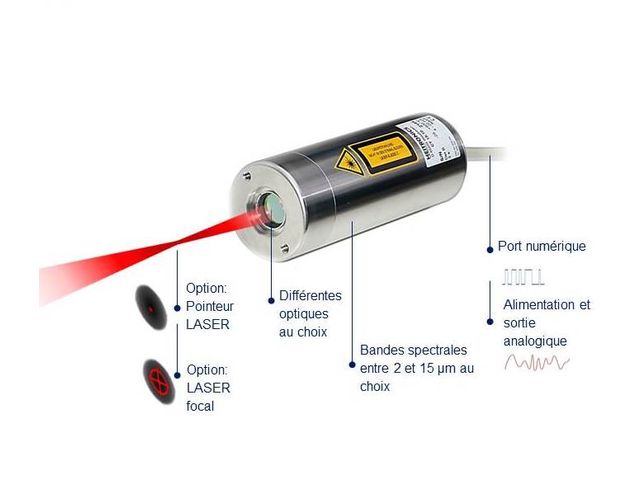

Characteristics

Sturdy stainless steel IP68 speaker
    Large temperature range from -25 to 2,000 degrees Celsius (Models)
    Fast response time from 5 ms (programmable)
    Fields of view from 1.7 mm
    Laser focus branding measurement fields
    Accuracy (0.7%) long-term stability
    Pulsed radiation method for greater temperature stability

Functions

Signal digital processing
    Setting up all settings via interface:
        Temperature range
        Similar output 0/4-20 mA; real value or min/max value
        Built-in crest and hollow detector
        Emissivity setting
        Environment temperature by reflection
