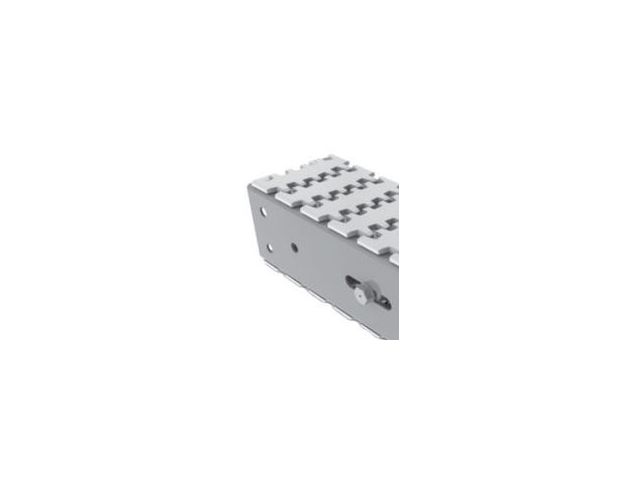

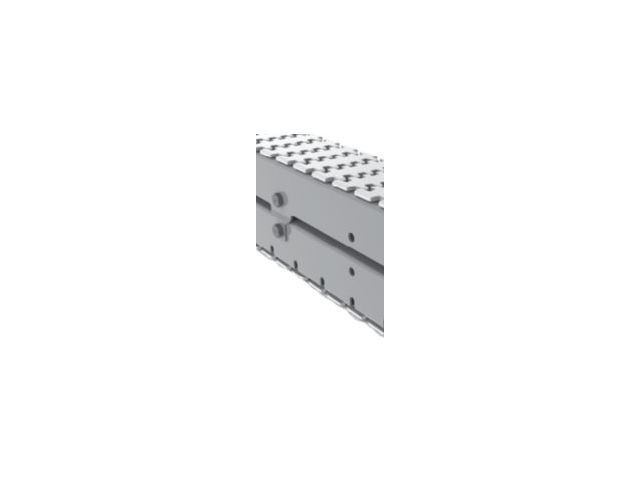

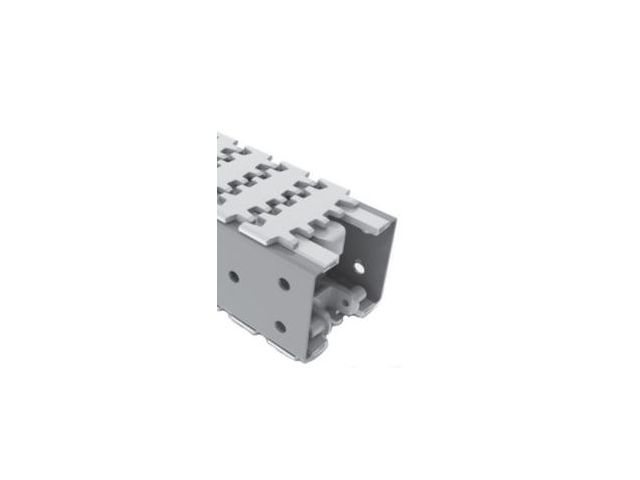

SM 83 mm Stainless Steel Conveyor

Heavy load chain conveyor

Ask for a quote

Presentation

The SM Conveyor is suitable for a wide range of applications either for horizontal or vertical product transportation.

Different Conveyor Chain Types
The SM multi-flexing conveyor systems uses a plastic chain that permits horizontal as well as vertical change of direction. In addition to the standard types, several special purpose chains are available. Take a look in the Tech Data located under Manuals & Literature for all options available. Please contact us or your local distributor for further assistance.

Technical features

Chain Width (mm) : 83 mm Tensile strength at 20ºC (N) : 6000 N Working temperature ºC : 20ºC – 60ºC Min. turning radius (mm) : 160 mm Link spacing (mm) : 33.5 mm Max. weight on conveyor (kg) : 200 kg Item width (mm) : 20-200 mm Max. item weight (kg) : 15 kg Chain weight (plain) (kg/m) : 1.20 kg/m Standard conveyor speed (m/min) : 3-50 m/min
