SK-02 | Cable Force Transducer

Other force sensors

“ Easy installation does not require the hoist to be dismantled nor modified. ”

Ask for a quote

Presentation

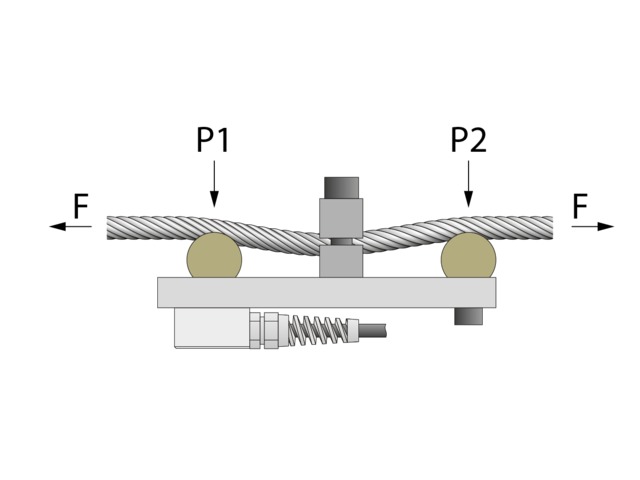

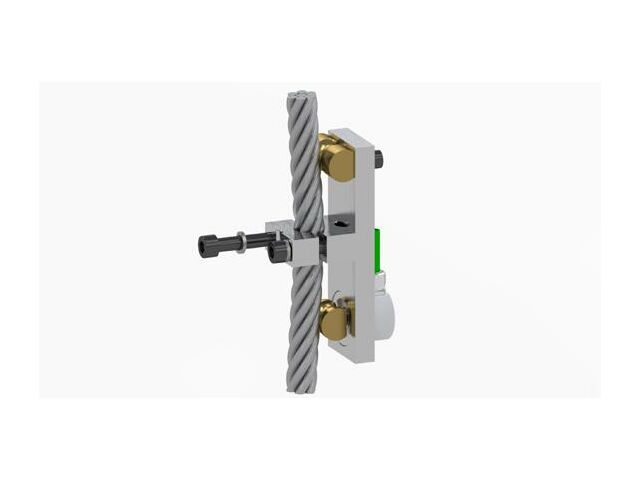

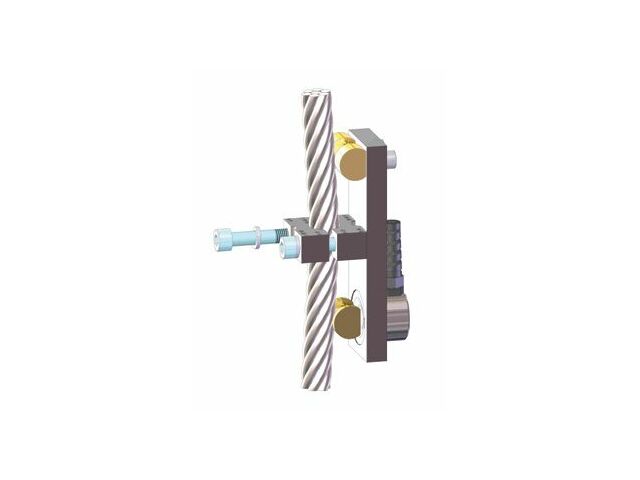

The SK-02 Cable Sensor is a low cost load cell specially designed to measure the tension force on hoisting rope. Easy installation does not require the hoist to be dismantled nor modified. The SK-02 sensor family covers a large range of cables from 8 to 36 mm in diameter and loads of 8 k·N (~800kg) to 150 k·N (~15 tons). Together with a load conditioner (LMU Series) and a digital display (AN Series, GAD Series), Magtrol SK-02 Cable Sensors constitute a complete measuring system for visualizing and continuously monitoring loads and detecting overloads.

Technical features

Suitable for cable diameters of 8 mm to 36 mm Sealed force sensor with 350Ω strain gauges Specially designed for retrofitting in existing crane equipment Brass supports allow smooth mechanical cable guidance IP 66 protection class Stainless steel construction Quick and easy installation Easy to mount directly on fixed point of cable Reliable and economical
