HRL Series | Anchor Load Cell

“ Connected to a portable or fixed MAGTROL electronic , this sensor offers a complete solution adapted to the most demanding applications. ”

Ask for a quote

Presentation

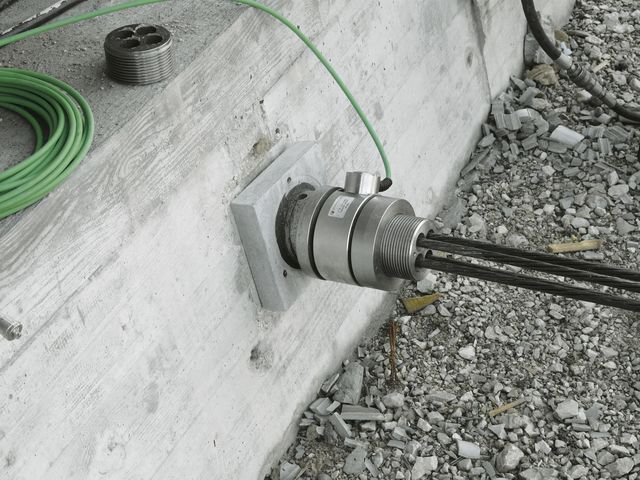

HRL Series load cells consist of a high quality stainless steel. This compact load cell is designed specifically for heavy duty use on construction sites, with load cells that are available in the range of 600 to 2700 kN. Special designs are available upon request.

The attached shielded cable includes a water-proof connector with cap. Version without connector are available as an option. Cable lengths are customisable according to the installation requirements; for further information please contact us.

The data collected from the strain gauge is proportional to the applied force. The signal is transmitted to the monitoring unit for amplification.

Technical features

Monitors anchor forces and other force measurements Range: 600 - 2 700 kN Admissible overload: 120 % of the nominal load Maximum load: 300 % of the nominal load Suitable for heavy-duty use on construction sites Easy to assemble Protection class: IP 66 Special designs available upon request Option: Lightning and Surge Protection

Download the complete technical features
